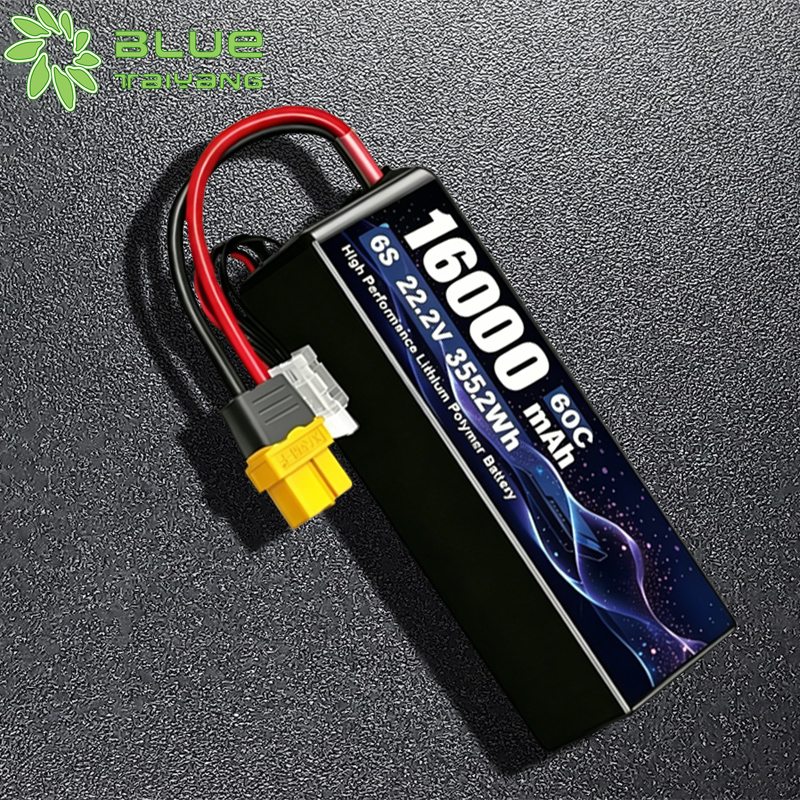

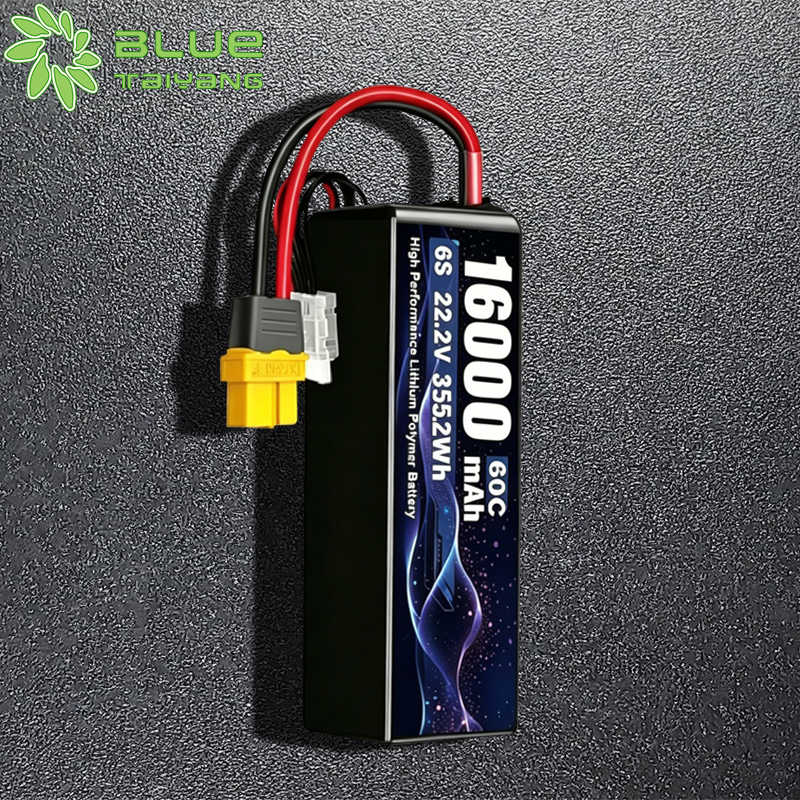

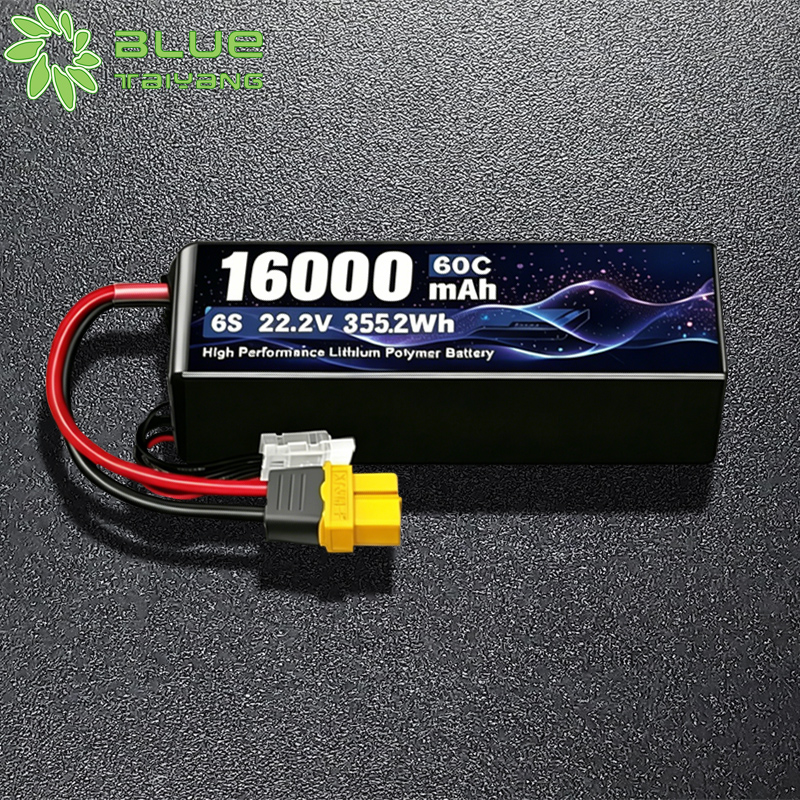

1174170 Rechargeable Lithium Polymer Battery 6s 22.2V 16000mah 60C High Rate Li-po Battery for Agricultural Drone/UAV and Electric Toy Car

Product model: 1174170 16000mah 22.2V
Rechargeable or Non-rechargeable: Rechargeable battery
Nominal voltage:22.2V
Nominal capacity: 16000mah
Discharge temperature: ordinary
Cycle life: >500 times
Discharge rate: 60C
Battery application: Electronics
Battery structure: Square flexible battery
Cell type: Polymer lithium battery cell

Application Area

Smart Home Souptoys Instruments and Apparatuses Medical Equipment Electronics Energy storage power supply

cherry@bluetaiyang.com Online Message

Online Customization

Product Specifications
Product Details
Product Pictures

Items	Parameter
Battery model	LP1174170
Design scheme	With PCM
Nominal voltage	22.2V
Minimum capacity	16000mAh(1C discharge)
Size	T：11.0mm W：74.0mm H：170.0mm(Includes PCM and wires)
Charging voltage	25.2V
Discharging cut-off voltage	15V
Standard charging	2.5A /25.2V
Max charging	3A /25.2V
Standard discharging	20C/25.2V
Weight	Appr：0.96kg
Shipment voltage	≥23.4V
Battery pack impedance	≤400mΩ
Operating temperature	Charging: 0°C ~ 45°C
	Discharging: -20°C ~60°C
Storage (At 50% SOC and specified temp, recoverable capacity in % vs time. )	-0°C~25°C	( 12 months, ≥85% )
	-10°C ~25°C	( 6 months, ≥85% )
	-10°C~45°C	( 1 month, ≥90% )
	20±5°C is the recommended storage temperature

Model	Normal Capacity	discharge rate	Voltage	Materials
902035	500mAh	20C	4.2V	LCO
641665	530mAh	60C	4.35V	LCO
852040	550mAh	20C	4.2V	LCO
751855	500mAh	60C	4.2V	LCO
4037125	1300mAh	60C	4.2V	LCO
753048	1000mAh	20C	4.2V	LCO
613462	1000mAh	60C	4.2V	LCO
803562	1200mAh	60C	4.2V	LCO
803060	1200mAh	20C	4.2V	LCO
603880	1500mAh	45C	4.2V	LCO
953562	1700mAh	60C	4.2V	LCO
823496	2200mAh	60C	4.2V	LCO
6043116	2500mAh	35C	4.2V	LCO
8734106	2600mAh	20C	4.2V	LCO
7242125	3500mAh	20C	4.2V	LCO
107080	5000mAh	60C	4.2V	LCO
7059156	6000mAh	60C	4.2V	LCO
9056156	8000mAh	60C	4.2V	LCO
9056156	8000mAh	20C	4.2V	LCO
1070140	8000mAh	60C	4.2V	LCO
1159156	10000mAh	60C	4.2V	LCO
1059156	10000mAh	20C	4.2V	LCO
9070170	12000mAh	20C	4.2V	LCO
1174170	16000mAh	20C	4.2V	LCO
1174170	16000mAh	15C	4.2V	LCO
5743128	4500mAh	15C	4.2V	LCO
6043125	2500mAh	60C	4.2V	NCA
803496	2000mAh	60C	4.2V	NCA
553880	1500mAh	45C	4.2V	NCA
802540	800mAh	20C	4.2V	NCA
808080	4000mAh	20C	4.2V	NCA
6875145	8000mAh	60C	22.2V	LCO
6860160	10000mAh	60C	22.2V	LCO
6875175	16000mAh	15C	22.2V	LCO

T	11.0mm
W	74.0mm
H	170.0mm

Product application
