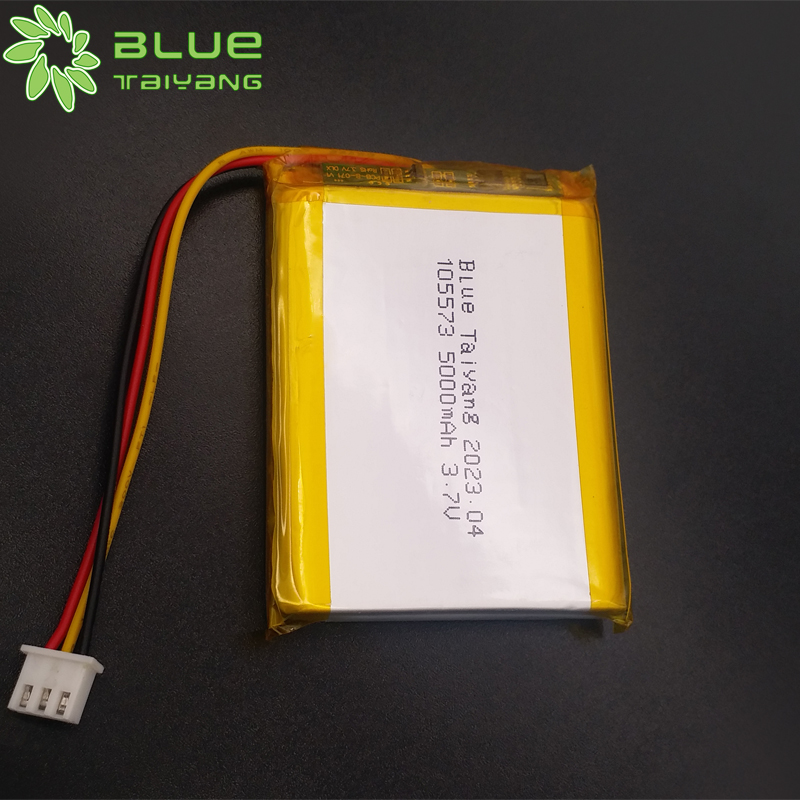

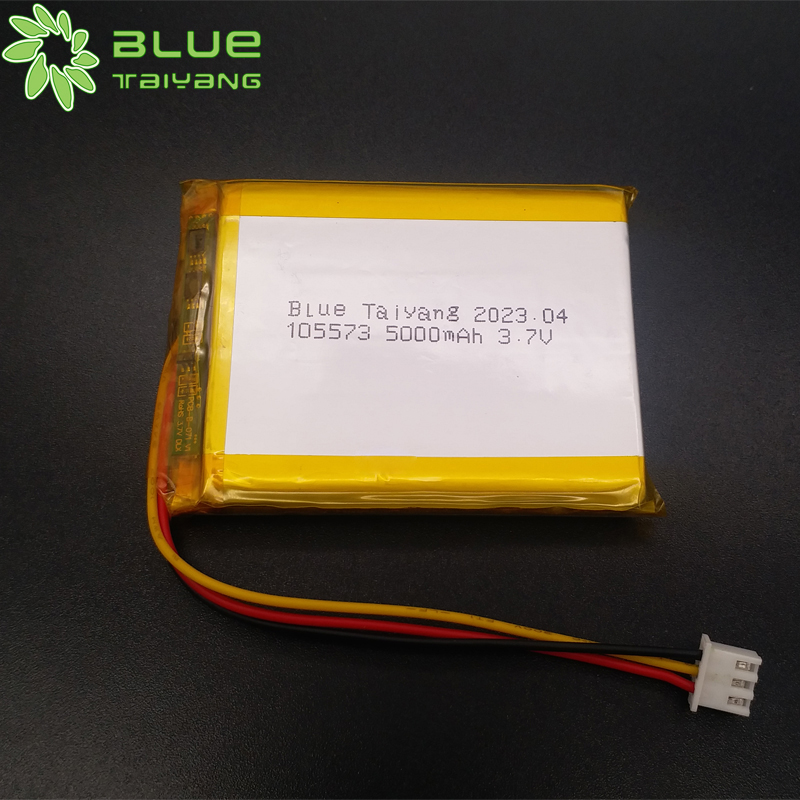

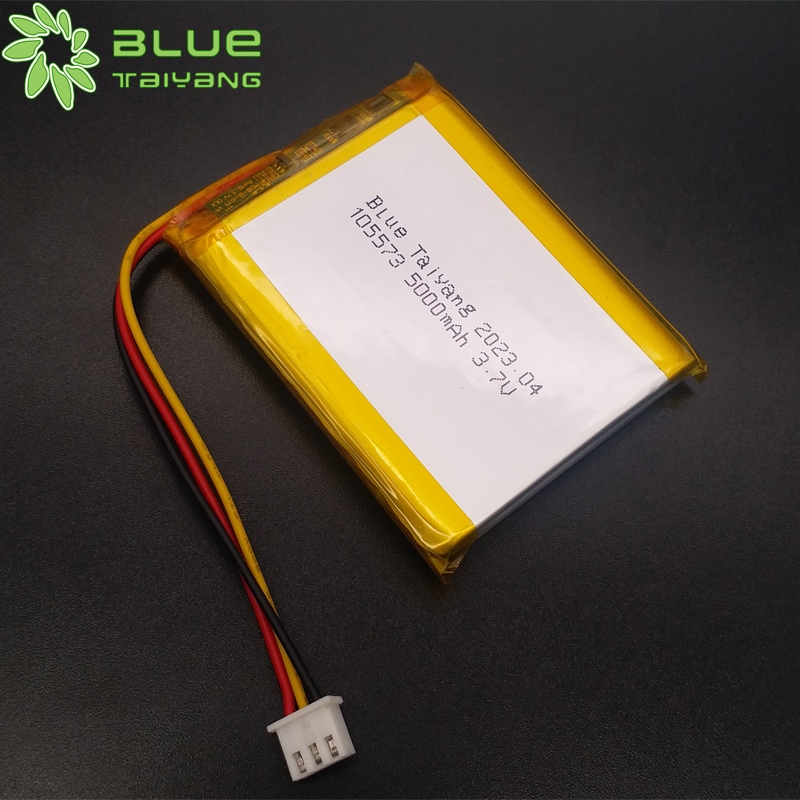

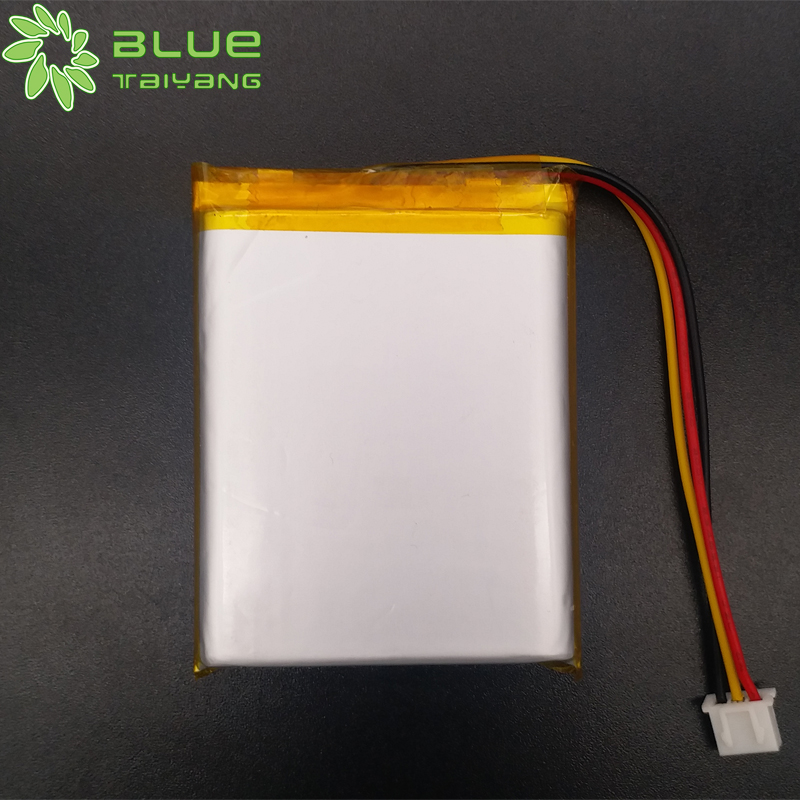

105573 batterie 3.7v rechargeable lipo battery 5000mah 3.7v 18.5wh lithium ion polymer battery

Product model: 105573 5000mah 3.7V
Rechargeable or Non-rechargeable: Rechargeable battery
Nominal voltage: 3.7V
Nominal capacity: 5000mah
Discharge temperature: ordinary
Cycle life: >300 times
Discharge rate: 0.5C
Battery application: Electronics
Battery structure: Square flexible battery
Cell type: Polymer lithium battery cell

Application Area

Consumer Electronics Medical equipment Instrument and apparatus Smart Home Digital products Toy

cherry@bluetaiyang.com Online Message

Online Customization

Product Specifications
Product Details
Product Pictures

Items	Parameter
Battery model	105573
Design scheme	With PCM
Nominal voltage	3.7V
Minimum capacity	5000mAh (0.5C discharge)
Size	T:10.0mm W:55.0mm H: 73.0mm (Includes PCM and wires) L: 90.0mm (Wire length)
Charging voltage	4.3V
Discharging cut-off voltage	2.5V
Standard charging	2.5A
Max charging	3A
Standard discharging	2.5A
Max discharging	3A
Weight	Appr：100.0g
Shipment voltage	≥3.9V
Battery pack impedance	≤40mΩ
Operating temperature	Charging: 0°C ~ 45°C
	Discharging: -20°C ~60°C
Storage (At 50% SOC and specified temp, recoverable capacity in % vs time. )	-10°C~25°C	(12 months, ≥85% )
	-10°C~45°C	(6 months, ≥85% )
	-10°C~60°C	(1 month, ≥90% )
	20±5°C is the recommended storage temperature

Model	Normal Voltage	Normal Capacity (mAh)	length (mm)	width (mm)	thickness (mm)	Download
104696	3.7/3.8V	6000	96	46	10
105372	3.7/3.8V	6000	72	53	10
105459	3.7/3.8V	5200	59	54	10
105596	3.7/3.8V	8100	9	55	10
105878	3.7/3.8V	6000	78	58	10
106072	3.7/3.8V	6000	72	60	10
106084	3.7/3.8V	6000	84	60	10
106596	3.7/3.8V	10000	96	65	10
106856	3.7/3.8V	5800	56	68	10
116791	3.7/3.8V	10000	91	67	11.0
124295	3.7/3.8V	6500	95	42	12
124590	3.7/3.8V	6800	90	45	12
125590	3.7/3.8V	10000	90	55	12
125871	3.7/3.8V	7800	71	87	12.0
126090	3.7/3.8V	8000	90	60	12.0
126280	3.7/3.8V	10000	80	62	12.0
134075	3.7/3.8V	6000	75	40	13
136074	3.7/3.8V	10000	74	60	13
446699	3.7/3.8V	5100	99	66	4.4
499271	3.7/3.8V	5300	71	92	4.9
507592	3.7/3.8V	5650	92	75	5.0
516583	3.7/3.8V	5020	83	65	5.1
526793	3.7/3.8V	5300	93	67	5.2
528985	3.7/3.8V	5200	85	89	5.2
587293	3.7/3.8V	5700	93	72	5.8
587795	3.7/3.8V	5800	95	77	5.8
606382	3.7/3.8V	5250	82	63	6.0
606781	3.7/3.8V	5050	81	67	6.0
607093	3.7/3.8V	6000	93	70	6.0
625597	3.7/3.8V	5650	97	55	6.2
625885	3.7/3.8V	5100	85	58	6.2
626488	3.7/3.8V	6050	88	64	6.2
626681	3.7/3.8V	5600	81	66	6.2
636492	3.7/3.8V	6000	92	64	6.3
657590	3.7/3.8V	6500	90	75	6.5
676476	3.7/3.8V	5100	76	64	6.7
677475	3.7/3.8V	5900	75	75	6.7
679798	3.7/3.8V	9000	98	97	6.7
687273	3.7/3.8V	6020	73	72	6.8
706077	3.7/3.8V	5500	77	60	7.0
706079	3.7/3.8V	5500	79	60	7.0
707285	3.7/3.8V	6000	85	72	7.0
708163	3.7/3.8V	5600	63	81	7.0
725776	3.7/3.8V	5920	76	57	7.2
726776	3.7/3.8V	5900	76	67	7.2
816965	3.7/3.8V	5450	65	69	8.1
836678	3.7/3.8V	5320	78	66	8.3
865773	3.7/3.8V	6100	73	57	8.6
895666	3.7/3.8V	5400	56	56	8.9
905593	3.7/3.8V	6000	93	55	9.0
906090	3.7/3.8V	6000	90	60	9.0
906187	3.7/3.8V	8120	87	61	9.0
906282	3.7/3.8V	6800	82	62	9.0
926076	3.7/3.8V	7020	76	60	9.2
935391	3.7/3.8V	6500	91	53	9.3
954475	3.7/3.8V	5100	75	44	9.5
954591	3.7/3.8V	5450	91	45	9.5
955478	3.7/3.8V	5900	78	54	9.5
956166	3.7/3.8V	5100	66	61	9.5
966371	3.7/3.8V	5300	71	63	9.6
966871	3.7/3.8V	6400	71	68	9.6
975473	3.7/3.8V	5900	73	54	9.7
987776	3.7/3.8V	7200	76	77	9.8
1048118	3.7/3.8V	10000	118	48	10.0
1055110	3.7/3.8V	10000	110	55	10.0
1055125	3.7/3.8V	10000	125	55	10.0
1060100	3.7/3.8V	10000	100	60	10.0
1060110	3.7/3.8V	10000	110	60	10.0
1065122	3.7/3.8V	10000	122	65	10.0
1158102	3.7/3.8V	10000	102	58	11.0
1260100	3.7/3.8V	10000	100	60	12.0
1260113	3.7/3.8V	10000	113	60	12.0
1336583	3.7/3.8V	10000	83	65	13.3
1376074	3.7/3.8V	10000	74	60	13.3
5385157	3.7/3.8V	10000	157	85	5.3
5494130	3.7/3.8V	9000	130	94	5.4
7565113	3.7/3.8V	8000	113	65	7.5
7565121	3.7/3.8V	8000	121	65	7.5
8080130	3.7/3.8V	12500	130	80	8.0
8377110	3.7/3.8V	10000	110	77	8.3
8870129	3.7/3.8V	10000	129	70	8.8
9058100	3.7/3.8V	10000	100	58	9.0
9060100	3.7/3.8V	8000	100	60	9.0
3710195	3.7/3.8	5050	195	10	3.7
8041118	3.7/3.8	5100	118	41	8
32100100	3.7/3.8	5100	100	100	3.2
4580122	3.7/3.8	5300	122	80	4.5
6458102	3.7/3.8	5400	102	58	6.4
31101151	3.7/3.8	5500	151	101	3.1
2874118	3.7/3.8	6000	118	74	2.8
3072178	3.7/3.8	6000	178	72	3
3080176	3.7/3.8	6000	176	80	3
3092140	3.7/3.8	6000	140	92	3
4273125	3.7/3.8	6000	125	73	4.2
5283114	3.7/3.8	6000	114	83	5.2
5474105	3.7/3.8	6000	105	74	5.4
5860127	3.7/3.8	6000	127	60	5.8
6253110	3.7/3.8	6000	110	53	6.2
6760121	3.7/3.8	6000	121	60	6.7
8551100	3.7/3.8	6000	100	51	8.5
30100140	3.7/3.8	6000	140	100	3
30101122	3.7/3.8	6000	122	101	3
30105114	3.7/3.8	6000	114	105	3
30105115	3.7/3.8	6000	115	105	3
30105125	3.7/3.8	6000	125	105	3
31110131	3.7/3.8	6000	131	110	3.1
32105113	3.7/3.8	6000	113	105	3.2
5655130	3.7/3.8	6100	130	55	5.6
1260105	3.7/3.8	6200	105	60	12
5060120	3.7/3.8	6200	120	60	5
4868130	3.7/3.8	6290	130	68	4.8
5287104	3.7/3.8	6400	104	87	5.2
4672135	3.7/3.8	6500	135	72	4.6
5084110	3.7/3.8	6500	110	84	5
6775120	3.7/3.8	6500	120	75	6.7
3074108	3.7/3.8	7000	108	74	3
3175185	3.7/3.8	7000	185	75	3.1
5510095	3.7/3.8	7000	95	10	5.5
6462110	3.7/3.8	7000	110	62	6.4
30100147	3.7/3.8	7000	147	100	3
36100116	3.7/3.8	7000	116	100	3.6
3594133	3.7/3.8	7350	133	94	3.5
4867160	3.7/3.8	7500	160	67	4.8
9058102	3.7/3.8	7500	102	58	9
5067113	3.7/3.8	7600	113	67	5
9642115	3.7/3.8	7600	115	42	9.6
4990112	3.7/3.8	7800	112	90	4.9
5063170	3.7/3.8	7800	170	63	5
5970115	3.7/3.8	7800	115	70	5.9
3582133	3.7/3.8	8000	133	82	3.5
4880125	3.7/3.8	8000	125	80	4.8
4885120	3.7/3.8	8000	120	85	4.8
5294100	3.7/3.8	8000	100	94	5.2
7865110	3.7/3.8	8000	110	65	7.8
8059130	3.7/3.8	8000	130	59	8
6075126	3.7/3.8	9000	126	75	6
7084110	3.7/3.8	9000	110	84	7
5482132	3.7/3.8	9150	132	82	5.4
8051142	3.7/3.8	9500	142	51	8
1160100	3.7/3.8	10000	100	60	11
1165110	3.7/3.8	10000	110	65	11
1165115	3.7/3.8	10000	115	65	11
1260110	3.7/3.8	10000	110	60	12
6565125	3.7/3.8	10000	125	65	6.5
7872118	3.7/3.8	10000	118	72	7.8
9065115	3.7/3.8	10000	115	65	9
9373129	3.7/3.8	10000	129	73	9.3
9572130	3.7/3.8	10000	130	72	9.5
9858102	3.7/3.8	10000	102	58	9.8
9960115	3.7/3.8	10000	115	60	9.9
6165150	3.7/3.8	10400	150	65	6.1
1080123	3.7/3.8	13400	123	80	10

Click here to find a list of other models

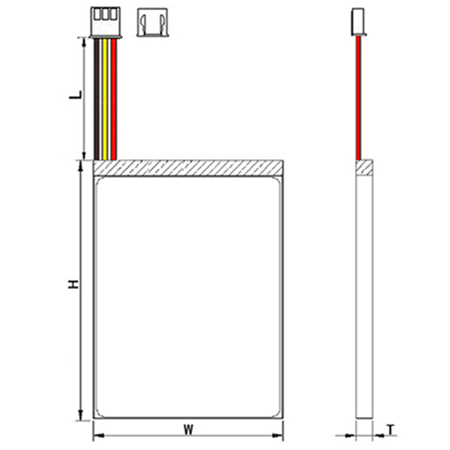

T	10.0mm
W	55.0mm
H	73.0mm
L	90.0mm

Product application

Electronic balance

walkie-talkie

Sweeping robot

Intelligent massage instrument physiotherapy instrument
