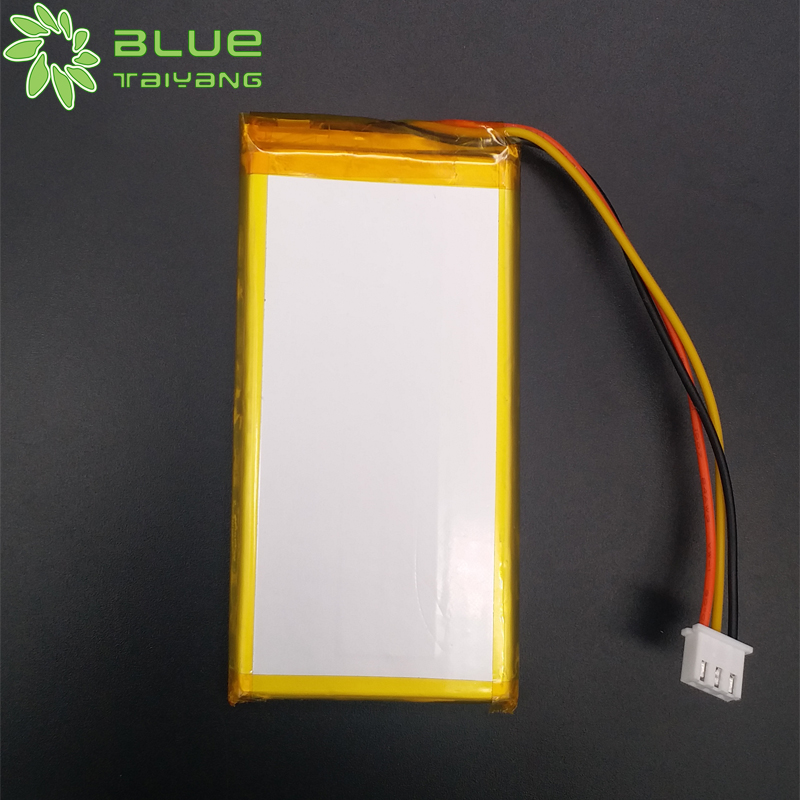

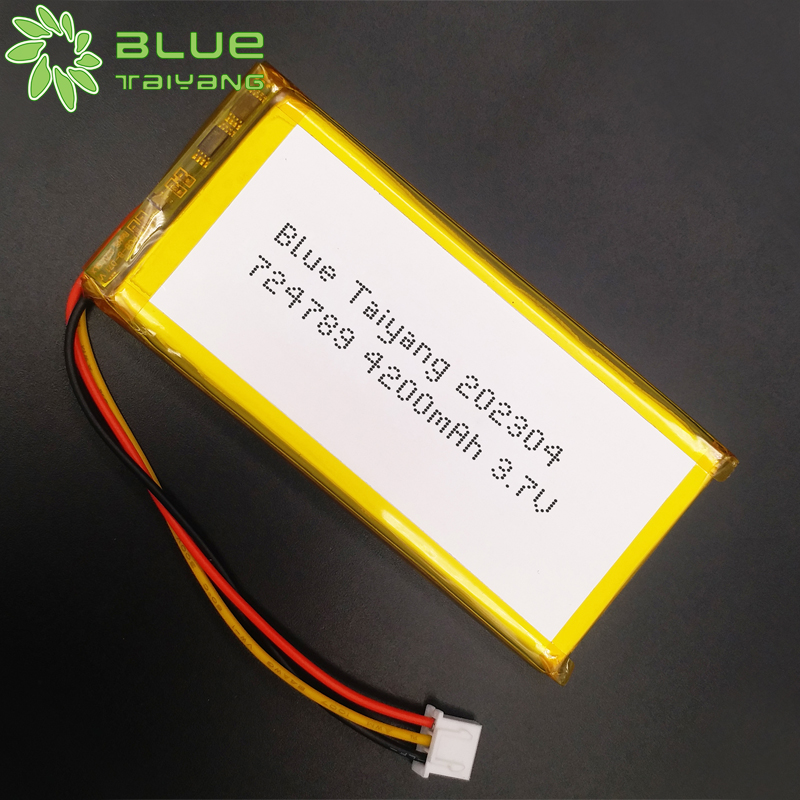

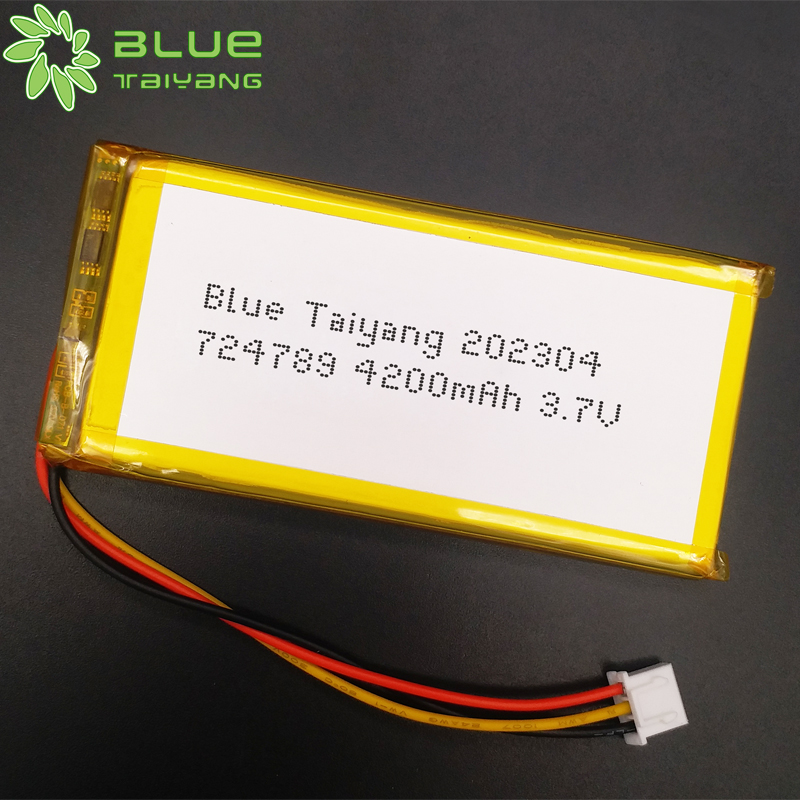

724789 lithium polymer battery with 4200mah 3.7 v li ion battery 3.7v 4.2v 4200mah rechargeable battery
Product model: 724789 4200mah 3.7V
Rechargeable or Non-rechargeable: Rechargeable battery
Nominal voltage: 3.7V
Nominal capacity: 4200mah
Discharge temperature: ordinary
Cycle life: >300 times
Discharge rate: 0.5C
Battery application: Electronics
Battery structure: Square flexible battery
Cell type: Polymer lithium battery cell
Application Area
Consumer Electronics Medical equipment Instrument and apparatus Smart Home Digital products Toy
cherry@bluetaiyang.com Online Message
Online Customization
*
*
*
*
*
*
    Items Parameter
    Battery model 724789
    Design scheme With PCM
    Nominal voltage 3.7V
    Minimum capacity  4200mAh (0.5C discharge)

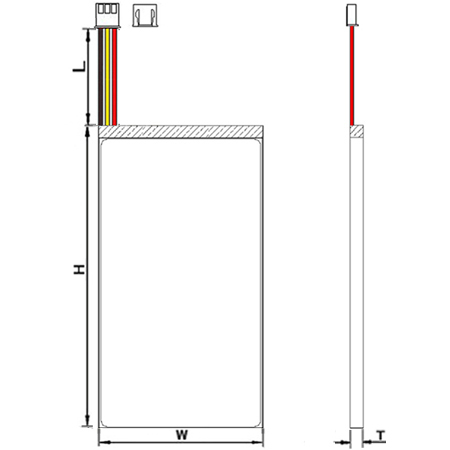

    Size
    T: 7.2mm
    W: 47.0mm
    H: 89.0mm  (Includes PCM and wires)
    L: 80.0mm (Wire length)
    Charging voltage 4.3V
    Discharging cut-off voltage  2.5V
    Standard charging  0.2C /4.2V
    Max charging 0.5.0C /4.2V
    Standard discharging 0.2C/2.5V
    Max discharging   0.5C/2.5V
    Weight   Appr:85.0g
    Shipment voltage  3.9V
    Battery pack impedance  ≤40
    Operating temperature  Charging:    0°C ~ 45°C
    Discharging: -20°C ~60°C
    Storage (At 50% SOC and specified temp, recoverable capacity in % vs time. )  -10°C~25°C (12 months, ≥85% )
    -10°C~45°C (6 months,  ≥85% )
    -10°C~60°C (1 month,   ≥90% )
    20±5°C is the recommended storage temperature

    Model Normal
    Voltage
    Normal
    Capacity
    (mAh)
    length
    (mm)
    width
    (mm)
    thickness
    (mm)
    Download
    103067 3.7/3.8V 2100 67 30 10
    103557 3.7/3.8V 3000 57 35 10
    103560 3.7/3.8V 2700 60 35 10
    103665 3.7/3.8V 3000 65 36 10
    103863 3.7/3.8V 2800 63 38 10
    103870 3.7/3.8V 4000 70 38 10
    103964 3.7/3.8V 3600 64 39 10
    104049 3.7/3.8V 2200 49 40 10.0
    104050 3.7/3.8V 2500 50 40 10.0
    104058 3.7/3.8V 2600 58 40 10
    104069 3.7/3.8V 4400 69 40 10
    104078 3.7/3.8V 4000 78 40 10
    104273 3.7/3.8V 4200 73 42 10
    104346 3.7/3.8V 3000 46 43 10
    104372 3.7/3.8V 5000 72 43 10
    104373 3.7/3.8V 5000 73 43 10.0
    104381 3.7/3.8V 5000 81 43 10.0
    104448 3.7/3.8V 3000 48 44 10
    104450 3.7/3.8V 3000 50 44 10
    104466 3.7/3.8V 4000 66 44 10
    104544 3.7/3.8V 3000 44 45 10
    104858 3.7/3.8V 3500 58 48 10.0
    104861 3.7/3.8V 5000 61 48 10
    104954 3.7/3.8V 4200 54 49 10
    105056 3.7/3.8V 4500 56 50 10
    105555 3.7/3.8V 5000 55 55 10
    105568 3.7/3.8V 5000 68 55 10.0
    105570 3.7/3.8V 5000 70 55 10.0
    105573 3.7/3.8V 5000 73 55 10.0
    106168 3.7/3.8V 5000 68 61 10
    106248 3.7/3.8V 4000 48 62 10
    113073 3.7/3.8V 3700 73 30 11
    113565 3.7/3.8V 3700 65 35 11
    113855 3.7/3.8V 3500 55 38 11
    113876 3.7/3.8V 4000 76 38 11
    113962 3.7/3.8V 3670 62 39 11
    114056 3.7/3.8V 3350 56 40 11
    114062 3.7/3.8V 4000 62 40 11
    114148 3.7/3.8V 3250 48 41 11
    114258 3.7/3.8V 4000 58 42 11
    114348 3.7/3.8V 3250 48 43 11
    114443 3.7/3.8V 2850 43 44 11
    114762 3.7/3.8V 4300 62 47 11
    114846 3.7/3.8V 3450 46 48 11
    114950 3.7/3.8V 3000 50 49 11
    115162 3.7/3.8V 5000 62 51 11
    115262 3.7/3.8V 5000 62 52 11
    122770 3.7/3.8V 2400 70 27 11
    123650 3.7/3.8V 3000 50 36 11
    123665 3.7/3.8V 3600 65 36 11
    123744 3.7/3.8V 2850 44 37 11
    123771 3.7/3.8V 4000 71 37 11
    123855 3.7/3.8V 3500 55 38 11
    123868 3.7/3.8V 4700 68 38 12
    124062 3.7/3.8V 4000 62 40 12
    124064 3.7/3.8V 4000 64 40 12
    124170 3.7/3.8V 4700 70 41 12
    124258 3.7/3.8V 4120 58 42 12
    124345 3.7/3.8V 3400 45 43 12
    124353 3.7/3.8V 4160 53 43 12
    124356 3.7/3.8V 4000 56 43 12
    124452 3.7/3.8V 4000 52 44 12
    124465 3.7/3.8V 4000 65 44 12
    124565 3.7/3.8V 4500 65 45 12
    125053 3.7/3.8V 4000 53 50 12
    133561 3.7/3.8V 3500 61 35 13
    133568 3.7/3.8V 4000 68 35 13
    266796 3.7/3.8V 2150 96 67 2.6
    267293 3.7/3.8V 2500 93 72 2.6
    267394 3.7/3.8V 2700 94 73 2.6
    287095 3.7/3.8V 2500 95 70 2.8
    288088 3.7/3.8V 2200 88 80 2.8
    298085 3.7/3.8V 3000 85 80 2.9
    298595 3.7/3.8V 4000 95 85 2.9
    298893 3.7/3.8V 3750 93 88 2.9
    306799 3.7/3.8V 2400 99 67 3.0
    307090 3.7/3.8V 2150 90 70 3.0
    307095 3.7/3.8V 2500 95 70 3.0
    308083 3.7/3.8V 3000 83 80 3.0
    308085 3.7/3.8V 2500 85 80 3.0
    308088 3.7/3.8V 2800 88 80 3.0
    308590 3.7/3.8V 3000 90 85 3.0
    308888 3.7/3.8V 3400 88 88 3.0
    309395 3.7/3.8V 3700 95 93 3.0
    309595 3.7/3.8V 3500 95 95 3.0
    309699 3.7/3.8V 4000 99 96 3.0
    309895 3.7/3.8V 4000 95 98 3.0
    316285 3.7/3.8V 2500 85 62 3.1
    317090 3.7/3.8V 3000 90 70 3.1
    325292 3.7/3.8V 2050 92 52 3.2
    326679 3.7/3.8V 2450 79 66 3.2
    327098 3.7/3.8V 3000 98 70 3.2
    327590 3.7/3.8V 3500 90 75 3.2
    329074 3.7/3.8V 3550 74 90 3.2
    335598 3.7/3.8V 2440 98 55 3.3
    335983 3.7/3.8V 2500 83 59 3.3
    336587 3.7/3.8V 2600 87 65 3.3
    337095 3.7/3.8V 2800 95 70 3.3
    345766 3.7/3.8V 2200 66 57 3.4
    346588 3.7/3.8V 3200 88 65 3.4
    346680 3.7/3.8V 2800 80 66 3.4
    347090 3.7/3.8V 2800 90 70 3.4
    348589 3.7/3.8V 4100 89 85 3.4
    349396 3.7/3.8V 2800 96 96 3.4
    355880 3.7/3.8V 2020 80 58 3.5
    356290 3.7/3.8V 2900 90 62 3.5
    356372 3.7/3.8V 2500 72 63 3.5
    356380 3.7/3.8V 2300 80 63 3.5
    356479 3.7/3.8V 3300 79 64 3.5
    356777 3.7/3.8V 2700 77 67 3.5
    357095 3.7/3.8V 2500 95 70 3.5
    357176 3.7/3.8V 3000 76 71 3.5
    365978 3.7/3.8V 2500 78 59 3.6
    366074 3.7/3.8V 2500 74 60 3.6
    366076 3.7/3.8V 2500 76 60 3.6
    366080 3.7/3.8V 2400 80 60 3.6
    366176 3.7/3.8V 2500 76 61 3.6
    366685 3.7/3.8V 2600 85 66 3.6
    367293 3.7/3.8V 4000 93 72 3.6
    368497 3.7/3.8V 4200 97 84 3.6
    375983 3.7/3.8V 3000 83 59 3.7
    376068 3.7/3.8V 2200 68 60 3.7
    376799 3.7/3.8V 3100 99 67 3.7
    376896 3.7/3.8V 3620 96 68 3.7
    378694 3.7/3.8V 5000 94 86 3.7
    379190 3.7/3.8V 4350 90 91 3.7
    385475 3.7/3.8V 2200 75 54 3.8
    385769 3.7/3.8V 2480 69 57 3.8
    385896 3.7/3.8V 3200 96 58 3.8
    386080 3.7/3.8V 2750 80 60 3.8
    386082 3.7/3.8V 3220 82 60 3.8
    386380 3.7/3.8V 2500 80 63 3.8
    386479 3.7/3.8V 3000 79 64 3.8
    386482 3.7/3.8V 2910 82 64 3.8
    386585 3.7/3.8V 2700 85 65 3.8
    386587 3.7/3.8V 3200 87 65 3.8
    386996 3.7/3.8V 3500 96 69 3.8
    396377 3.7/3.8V 2500 77 63 3.9
    396871 3.7/3.8V 2850 71 68 3.9
    398093 3.7/3.8V 4000 93 80 3.9
    404579 3.7/3.8V 2300 79 45 4.0
    405887 3.7/3.8V 3000 87 58 4.0
    405889 3.7/3.8V 3000 89 58 4.0
    405890 3.7/3.8V 3000 90 58 4.0
    405969 3.7/3.8V 2650 69 59 4.0
    405981 3.7/3.8V 2700 81 59 4.0
    406063 3.7/3.8V 2100 63 60 4.0
    406080 3.7/3.8V 3000 80 60 4.0
    406082 3.7/3.8V 3000 82 60 4.0
    406387 3.7/3.8V 3485 87 63 4.0
    406484 3.7/3.8V 3600 84 64 4.0
    406493 3.7/3.8V 3900 93 64 4.0
    406669 3.7/3.8V 3000 69 66 4.0
    406787 3.7/3.8V 3200 87 67 4.0
    408095 3.7/3.8V 4000 95 80 4.0
    408596 3.7/3.8V 4500 96 85 4.0
    408991 3.7/3.8V 3250 91 89 4.0
    415489 3.7/3.8V 3000 89 54 4.1
    416087 3.7/3.8V 3500 87 60 4.1
    416179 3.7/3.8V 2700 79 61 4.1
    416276 3.7/3.8V 2500 76 62 4.1
    416584 3.7/3.8V 3900 84 65 4.1
    416587 3.7/3.8V 3500 87 65 4.1
    424590 3.7/3.8V 3180 90 45 4.2
    425864 3.7/3.8V 2220 64 58 4.2
    426278 3.7/3.8V 2700 78 62 4.2
    426386 3.7/3.8V 3000 86 63 4.2
    426483 3.7/3.8V 3000 83 64 4.2
    426484 3.7/3.8V 3500 84 64 4.2
    426488 3.7/3.8V 4000 88 64 4.2
    426584 3.7/3.8V 4000 84 65 4.2
    428787 3.7/3.8V 4250 87 87 4.2
    428978 3.7/3.8V 3900 78 89 4.2
    434296 3.7/3.8V 2150 96 42 4.3
    435483 3.7/3.8V 2800 83 54 4.3
    436290 3.7/3.8V 2400 90 62 4.3
    436382 3.7/3.8V 4000 82 63 4.3
    436384 3.7/3.8V 4000 84 63 4.3
    436578 3.7/3.8V 3300 78 65 4.3
    436582 3.7/3.8V 3950 82 65 4.3
    436660 3.7/3.8V 2700 60 36 4.3
    436981 3.7/3.8V 4000 81 69 4.3
    437885 3.7/3.8V 4500 85 78 4.3
    438155 3.7/3.8V 3100 55 81 4.3
    443879 3.7/3.8V 2050 79 38 4.4
    444090 3.7/3.8V 2547 90 40 4.4
    445285 3.7/3.8V 2800 85 52 4.4
    445392 3.7/3.8V 2500 91 53 4.4
    445769 3.7/3.8V 2920 69 57 4.4
    445770 3.7/3.8V 2950 70 57 4.4
    446388 3.7/3.8V 4000 88 63 4.4
    453776 3.7/3.8V 2050 76 37 4.5
    453995 3.7/3.8V 2100 95 39 4.5
    454092 3.7/3.8V 2900 92 40 4.5
    455085 3.7/3.8V 2300 85 50 4.5
    455271 3.7/3.8V 2550 71 52 4.5
    455369 3.7/3.8V 2020 69 53 4.5
    456498 3.7/3.8V 2800 98 64 4.5
    459576 3.7/3.8V 4800 76 95 4.5
    465557 3.7/3.8V 2450 57 55 4.6
    465585 3.7/3.8V 2800 85 55 4.6
    465880 3.7/3.8V 3000 80 58 4.6
    466061 3.7/3.8V 2200 61 60 4.6
    466272 3.7/3.8V 3650 72 62 4.6
    466380 3.7/3.8V 3500 80 63 4.6
    466493 3.7/3.8V 4800 93 64 4.6
    466561 3.7/3.8V 2500 61 65 4.6
    466591 3.7/3.8V 4900 91 65 4.6
    466595 3.7/3.8V 4950 95 65 4.6
    466666 3.7/3.8V 3000 66 66 4.6
    466986 3.7/3.8V 3900 86 69 4.6
    468882 3.7/3.8V 4800 82 88 4.6
    474475 3.7/3.8V 2580 75 44 4.7
    474580 3.7/3.8V 2300 80 45 4.7
    475886 3.7/3.8V 3850 86 58 4.7
    475984 3.7/3.8V 4000 84 59 4.7
    476078 3.7/3.8V 3300 78 60 4.7
    476179 3.7/3.8V 3500 79 61 4.7
    476180 3.7/3.8V 4000 80 61 4.7
    476369 3.7/3.8V 2750 69 63 4.7
    476371 3.7/3.8V 2750 71 63 4.7
    476389 3.7/3.8V 4880 89 63 4.7
    476484 3.7/3.8V 4400 84 64 4.7
    476690 3.7/3.8V 4930 90 66 4.7
    477877 3.7/3.8V 4400 77 78 4.7
    485575 3.7/3.8V 2750 75 55 4.8
    485584 3.7/3.8V 3420 84 55 4.8
    485795 3.7/3.8V 4900 95 57 4.8
    486079 3.7/3.8V 3500 79 60 4.8
    486087 3.7/3.8V 2400 87 60 4.8
    486095 3.7/3.8V 4000 95 60 4.8
    486272 3.7/3.8V 3950 72 62 4.8
    486374 3.7/3.8V 3150 74 63 4.8
    486574 3.7/3.8V 3600 74 65 4.8
    486590 3.7/3.8V 4000 90 65 4.8
    486790 3.7/3.8V 5000 90 67 4.8
    486871 3.7/3.8V 3200 71 68 4.8
    488471 3.7/3.8V 3800 71 84 4.8
    494597 3.7/3.8V 3250 97 45 4.9
    495490 3.7/3.8V 4030 90 54 4.9
    495878 3.7/3.8V 3720 78 58 4.9
    496688 3.7/3.8V 4720 88 66 4.9
    496691 3.7/3.8V 4700 91 66 4.9
    497087 3.7/3.8V 4900 87 70 4.9
    499097 3.7/3.8V 5000 97 90 4.9
    504078 3.7/3.8V 2400 78 40 5.0
    504997 3.7/3.8V 3000 97 49 5.0
    505170 3.7/3.8V 2200 70 51 5.0
    505256 3.7/3.8V 2200 56 52 5.0
    505999 3.7/3.8V 3715 99 59 5.0
    506193 3.7/3.8V 4000 93 61 5.0
    506465 3.7/3.8V 3300 65 64 5.0
    506582 3.7/3.8V 4000 82 65 5.0
    506758 3.7/3.8V 2700 58 67 5.0
    507175 3.7/3.8V 4000 75 71 5.0
    507779 3.7/3.8V 4100 79 77 5.0
    507983 3.7/3.8V 4000 83 79 5.0
    508865 3.7/3.8V 4700 65 88 5.0
    515777 3.7/3.8V 3600 77 57 5.1
    515974 3.7/3.8V 3600 74 59 5.1
    517183 3.7/3.8V 5000 83 71 5.1
    524687 3.7/3.8V 3200 87 46 5.2
    524961 3.7/3.8V 2620 61 49 5.2
    525075 3.7/3.8V 2500 75 50 5.2
    525280 3.7/3.8V 2700 80 75 5.2
    525580 3.7/3.8V 3500 80 52 5.2
    525777 3.7/3.8V 3400 77 55 5.2
    525779 3.7/3.8V 3600 79 57 5.2
    526270 3.7/3.8V 3400 70 62 5.2
    526272 3.7/3.8V 3400 72 62 5.2
    526275 3.7/3.8V 4200 75 62 5.2
    526468 3.7/3.8V 3850 68 64 5.2
    526480 3.7/3.8V 3850 80 64 5.2
    526580 3.7/3.8V 4000 80 65 5.2
    526974 3.7/3.8V 4150 74 69 5.2
    533975 3.7/3.8V 2100 75 39 5.3
    534764 3.7/3.8V 2600 64 47 5.3
    535186 3.7/3.8V 3300 86 51 5.3
    535284 3.7/3.8V 3300 84 52 5.3
    535292 3.7/3.8V 4000 92 52 5.3
    535578 3.7/3.8V 3600 78 55 5.3
    535776 3.7/3.8V 3700 76 57 5.3
    536057 3.7/3.8V 3200 57 60 5.3
    544380 3.7/3.8V 2200 90 43 5.4
    544762 3.7/3.8V 2630 62 47 5.4
    545068 3.7/3.8V 2550 68 50 5.4
    545163 3.7/3.8V 2100 63 51 5.4
    545287 3.7/3.8V 3350 87 52 5.4
    545288 3.7/3.8V 2800 88 52 5.4
    545669 3.7/3.8V 2950 69 56 5.4
    545693 3.7/3.8V 4250 93 56 5.4
    546290 3.7/3.8V 4850 90 62 5.4
    546982 3.7/3.8V 4000 82 69 5.4
    546984 3.7/3.8V 4000 84 69 5.4
    554393 3.7/3.8V 3350 93 43 5.5
    554998 3.7/3.8V 4600 98 49 5.5
    555498 3.7/3.8V 4000 98 54 5.5
    556095 3.7/3.8V 4000 95 60 5.5
    564070 3.7/3.8V 2500 70 40 5.6
    564173 3.7/3.8V 2400 73 41 5.6
    564497 3.7/3.8V 3000 97 44 5.6
    565872 3.7/3.8V 3400 72 58 5.6
    566270 3.7/3.8V 3000 70 62 5.6
    573496 3.7/3.8V 2200 96 34 5.7
    574599 3.7/3.8V 3150 99 45 5.7
    574954 3.7/3.8V 2220 54 49 5.7
    575576 3.7/3.8V 3450 76 55 5.7
    575578 3.7/3.8V 2500 78 55 5.7
    576090 3.7/3.8V 4150 90 60 5.7
    576185 3.7/3.8V 5000 85 61 5.7
    577093 3.7/3.8V 5000 93 70 5.7
    584764 3.7/3.8V 2050 64 47 5.8
    584858 3.7/3.8V 2090 58 48 5.8
    584976 3.7/3.8V 3460 76 49 5.8
    585575 3.7/3.8V 2900 75 55 5.8
    585577 3.7/3.8V 3900 77 55 5.8
    585579 3.7/3.8V 4200 79 55 5.8
    585880 3.7/3.8V 3600 80 58 5.8
    585950 3.7/3.8V 2650 50 59 5.8
    585962 3.7/3.8V 3500 62 59 5.8
    586285 3.7/3.8V 4000 85 62 5.8
    587578 3.7/3.8V 4000 78 75 5.8
    588157 3.7/3.8V 3500 57 81 5.8
    594280 3.7/3.8V 2600 80 42 5.9
    594368 3.7/3.8V 2250 68 43 5.9
    594395 3.7/3.8V 2800 95 43 5.9
    595578 3.7/3.8V 3600 78 55 5.9
    596067 3.7/3.8V 2900 67 60 5.9
    596181 3.7/3.8V 4700 81 61 5.9
    596378 3.7/3.8V 5000 63 63 5.9
    603380 3.7/3.8V 2100 80 33 6.0
    604097 3.7/3.8V 2600 97 40 6.0
    604664 3.7/3.8V 2200 64 46 6.0
    604674 3.7/3.8V 3600 74 46 6.0
    604875 3.7/3.8V 2600 75 48 6.0
    604880 3.7/3.8V 3700 80 48 6.0
    605361 3.7/3.8V 2750 61 53 6.0
    605374 3.7/3.8V 2400 74 53 6.0
    605483 3.7/3.8V 3500 83 54 6.0
    605490 3.7/3.8V 4000 90 54 6.0
    605562 3.7/3.8V 2700 62 55 6.0
    605578 3.7/3.8V 3400 78 55 6.0
    605969 3.7/3.8V 4000 69 59 6.0
    606063 3.7/3.8V 3400 63 60 6.0
    606070 3.7/3.8V 3000 70 60 6.0
    606072 3.7/3.8V 4150 72 60 6.0
    606080 3.7/3.8V 3900 80 60 6.0
    606082 3.7/3.8V 3800 82 60 6.0
    606090 3.7/3.8V 5000 90 60 6.0
    606168 3.7/3.8V 2400 68 61 6.0
    606262 3.7/3.8V 3550 62 62 6.0
    606282 3.7/3.8V 5000 82 62 6.0
    606397 3.7/3.8V 4850 97 63 6.0
    606576 3.7/3.8V 3450 76 65 6.0
    606580 3.7/3.8V 4000 80 65 6.0
    606696 3.7/3.8V 5000 96 66 6.0
    614279 3.7/3.8V 3150 79 42 6.1
    614282 3.7/3.8V 3000 82 42 6.1
    614857 3.7/3.8V 2500 57 48 6.1
    615453 3.7/3.8V 2030 53 54 6.1
    615576 3.7/3.8V 3950 76 55 6.1
    615957 3.7/3.8V 3175 57 59 6.1
    616864 3.7/3.8V 3896 64 68 6.1
    624751 3.7/3.8V 2250 51 47 6.2
    624764 3.7/3.8V 2800 64 47 6.2
    624871 3.7/3.8V 3000 71 48 6.2
    624885 3.7/3.8V 4100 85 48 6.2
    625686 3.7/3.8V 4800 86 56 6.2
    625978 3.7/3.8V 5000 78 59 6.2
    626196 3.7/3.8V 5000 96 61 6.2
    627138 3.7/3.8V 2550 38 71 6.2
    634791 3.7/3.8V 4500 91 47 6.3
    634869 3.7/3.8V 2800 69 48 6.3
    635776 3.7/3.8V 4860 76 57 6.3
    635883 3.7/3.8V 4000 83 58 6.3
    636267 3.7/3.8V 3300 67 62 6.3
    638870 3.7/3.8V 4900 70 88 6.3
    644889 3.7/3.8V 3950 89 48 6.4
    645465 3.7/3.8V 3900 65 54 6.4
    645573 3.7/3.8V 3850 73 55 6.4
    646175 3.7/3.8V 4600 75 61 6.4
    653964 3.7/3.8V 2300 64 39 6.5
    653975 3.7/3.8V 2500 75 39 6.5
    654566 3.7/3.8V 2200 66 45 6.5
    654764 3.7/3.8V 2050 64 47 6.5
    654952 3.7/3.8V 2600 52 49 6.5
    655471 3.7/3.8V 3850 71 54 6.5
    655485 3.7/3.8V 3300 85 54 6.5
    655566 3.7/3.8V 3200 66 55 6.5
    655667 3.7/3.8V 3500 67 56 6.5
    655982 3.7/3.8V 5000 82 59 6.5
    656090 3.7/3.8V 5000 90 60 6.5
    656182 3.7/3.8V 4440 82 61 6.5
    656470 3.7/3.8V 3600 70 64 6.5
    656473 3.7/3.8V 4400 73 64 6.5
    656583 3.7/3.8V 5000 83 65 6.5
    663079 3.7/3.8V 2100 79 30 6.6
    663993 3.7/3.8V 3000 93 39 6.6
    664952 3.7/3.8V 2600 52 49 6.6
    665365 3.7/3.8V 3500 65 53 6.6
    665477 3.7/3.8V 4520 77 54 6.6
    665487 3.7/3.8V 5000 87 55 6.6
    665567 3.7/3.8V 3000 67 55 6.6
    666255 3.7/3.8V 3150 55 62 6.6
    675076 3.7/3.8V 5000 76 50 6.7
    675395 3.7/3.8V 5000 95 53 6.7
    675479 3.7/3.8V 4500 79 54 6.7
    675571 3.7/3.8V 4500 74 55 6.7
    675883 3.7/3.8V 5000 83 58 6.7
    676090 3.7/3.8V 5000 90 60 6.7
    683782 3.7/3.8V 3000 82 37 6.8
    683886 3.7/3.8V 2800 86 38 6.8
    683982 3.7/3.8V 2800 82 39 6.8
    684078 3.7/3.8V 2500 78 40 6.8
    684570 3.7/3.8V 2520 70 45 6.8
    684698 3.7/3.8V 4100 98 46 6.8
    684856 3.7/3.8V 3080 56 48 6.8
    684893 3.7/3.8V 4000 93 48 6.8
    684987 3.7/3.8V 3900 87 49 6.8
    685068 3.7/3.8V 3000 68 50 6.8
    685163 3.7/3.8V 3000 63 51 6.8
    685185 3.7/3.8V 4400 85 51 6.8
    685264 3.7/3.8V 2650 64 52 6.8
    685450 3.7/3.8V 2450 50 54 6.8
    685578 3.7/3.8V 4000 78 55 6.8
    694796 3.7/3.8V 5000 96 47 6.9
    695268 3.7/3.8V 3000 68 52 6.9
    695383 3.7/3.8V 4200 83 53 6.9
    695466 3.7/3.8V 4000 66 46 6.9
    695670 3.7/3.8V 4000 70 56 6.9
    695766 3.7/3.8V 4000 66 57 6.9
    695776 3.7/3.8V 5000 76 57 6.9
    696175 3.7/3.8V 5000 75 61 6.9
    703874 3.7/3.8V 2600 74 38 7.0
    703876 3.7/3.8V 2500 76 39 7.0
    703982 3.7/3.8V 2800 85 40 7.0
    704060 3.7/3.8V 2100 60 40 7.0
    704084 3.7/3.8V 3000 84 42 7.0
    704270 3.7/3.8V 3000 70 45 7.0
    704560 3.7/3.8V 2700 60 45 7.0
    704849 3.7/3.8V 2200 49 48 7.0
    705167 3.7/3.8V 3000 67 51 7.0
    705245 3.7/3.8V 2600 45 52 7.0
    705586 3.7/3.8V 4400 86 55 7.0
    705960 3.7/3.8V 3500 60 59 7.0
    706090 3.7/3.8V 5000 90 60 7.0
    706174 3.7/3.8V 4000 74 61 7.0
    713982 3.7/3.8V 3000 82 39 7.1
    714359 3.7/3.8V 2300 59 43 7.1
    723390 3.7/3.8V 2600 90 33 7.2
    723398 3.7/3.8V 3500 98 33 7.2
    723499 3.7/3.8V 3500 99 34 7.2
    724372 3.7/3.8V 3000 72 43 7.2
    725671 3.7/3.8V 4920 71 56 7.2
    726378 3.7/3.8V 5000 78 63 7.2
    733662 3.7/3.8V 2100 62 36 7.3
    733762 3.7/3.8V 2200 62 37 7.3
    733978 3.7/3.8V 3000 78 39 7.3
    734470 3.7/3.8V 3000 70 44 7.3
    735080 3.7/3.8V 4800 80 50 7.3
    735153 3.7/3.8V 3060 53 51 7.3
    735490 3.7/3.8V 5000 90 54 7.3
    735762 3.7/3.8V 4020 62 57 7.3
    735987 3.7/3.8V 5000 87 59 7.3
    736285 3.7/3.8V 4750 85 62 7.3
    737066 3.7/3.8V 2100 66 70 7.3
    743862 3.7/3.8V 2400 62 38 7.4
    744445 3.7/3.8V 2200 45 44 7.4
    745060 3.7/3.8V 3000 60 50 7.4
    752886 3.7/3.8V 2620 86 28 7.5
    753898 3.7/3.8V 3500 98 38 7.5
    754698 3.7/3.8V 4100 98 46 7.5
    755064 3.7/3.8V 3400 64 50 7.5
    755585 3.7/3.8V 4000 85 55 7.5
    755590 3.7/3.8V 5000 90 55 7.5
    755673 3.7/3.8V 5000 73 56 7.5
    756175 3.7/3.8V 4800 75 61 7.5
    756378 3.7/3.8V 5000 78 63 7.5
    763556 3.7/3.8V 2300 56 35 7.6
    764395 3.7/3.8V 4300 95 43 7.6
    765068 3.7/3.8V 3800 68 50 7.6
    765178 3.7/3.8V 5000 78 51 7.6
    766063 3.7/3.8V 4900 63 60 7.6
    775068 3.7/3.8V 4000 68 50 7.7
    775656 3.7/3.8V 3200 56 56 7.7
    783468 3.7/3.8V 2750 68 34 7.8
    783670 3.7/3.8V 2500 70 36 7.8
    784060 3.7/3.8V 2500 60 40 7.8
    784171 3.7/3.8V 2200 71 41 7.8
    784368 3.7/3.8V 3000 69 43 7.8
    785275 3.7/3.8V 4680 75 52 7.8
    794350 3.7/3.8V 2050 50 43 7.9
    794679 3.7/3.8V 4500 79 46 7.9
    802792 3.7/3.8V 2500 92 27 8.0
    803470 3.7/3.8V 2700 70 34 8.0
    803883 3.7/3.8V 3900 83 38 8.0
    803985 3.7/3.8V 4000 85 39 8.0
    804457 3.7/3.8V 2400 57 44 8.0
    804672 3.7/3.8V 3870 72 46 8.0
    804771 3.7/3.8V 4150 74 47 8.0
    805065 3.7/3.8V 4000 65 50 8.0
    805080 3.7/3.8V 4000 80 50 8.0
    805457 3.7/3.8V 4020 57 54 8.0
    805566 3.7/3.8V 3650 66 55 8.0
    805575 3.7/3.8V 3750 75 55 8.0
    805683 3.7/3.8V 4300 83 56 8.0
    805861 3.7/3.8V 4500 61 58 8.0
    806263 3.7/3.8V 4200 63 62 8.0
    807662 3.7/3.8V 4500 62 76 8.0
    813888 3.7/3.8V 3900 88 38 8.1
    814772 3.7/3.8V 4000 72 47 8.1
    815261 3.7/3.8V 3000 61 52 8.1
    815567 3.7/3.8V 3924 67 55 8.1
    815769 3.7/3.8V 5000 69 57 8.1
    824090 3.7/3.8V 4900 90 40 8.2
    824777 3.7/3.8V 4000 77 47 8.2
    825575 3.7/3.8V 4800 75 55 8.2
    834888 3.7/3.8V 5000 88 48 8.3
    835676 3.7/3.8V 4800 76 56 8.3
    843757 3.7/3.8V 3000 57 37 8.4
    844353 3.7/3.8V 2950 53 43 8.4
    844872 3.7/3.8V 5000 72 48 8.4
    844969 3.7/3.8V 4000 69 49 8.4
    845360 3.7/3.8V 4100 60 53 8.4
    846061 3.7/3.8V 4000 61 60 8.4
    853863 3.7/3.8V 2600 63 38 8.5
    854375 3.7/3.8V 4400 75 43 8.5
    854545 3.7/3.8V 2300 45 45 8.5
    854665 3.7/3.8V 2820 65 46 8.5
    854969 3.7/3.8V 3670 69 49 8.5
    855260 3.7/3.8V 3500 60 52 8.5
    855767 3.7/3.8V 4600 67 57 8.5
    864475 3.7/3.8V 4100 75 44 8.6
    864480 3.7/3.8V 4000 80 44 8.6
    864974 3.7/3.8V 4300 74 49 8.6
    865268 3.7/3.8V 4700 68 52 8.6
    865557 3.7/3.8V 4200 57 55 8.6
    874050 3.7/3.8V 2450 50 40 8.7
    874353 3.7/3.8V 3100 53 43 8.7
    874376 3.7/3.8V 3600 76 43 8.7
    874969 3.7/3.8V 3500 69 49 8.7
    884169 3.7/3.8V 2500 69 41 8.8
    884553 3.7/3.8V 2600 53 45 8.8
    885054 3.7/3.8V 2930 54 50 8.8
    885266 3.7/3.8V 5000 66 52 8.8
    885657 3.7/3.8V 3800 56 56 8.8
    894672 3.7/3.8V 4800 46 46 8.9
    895465 3.7/3.8V 5000 54 54 8.9
    895764 3.7/3.8V 5000 57 57 8.9
    903588 3.7/3.8V 4000 35 35 9.0
    903659 3.7/3.8V 2500 36 36 9.0
    904083 3.7/3.8V 3800 83 40 9.0
    904261 3.7/3.8V 3000 61 42 9.0
    904356 3.7/3.8V 3000 56 43 9.0
    904954 3.7/3.8V 3050 54 49 9.0
    905050 3.7/3.8V 2500 50 50 9.0
    905265 3.7/3.8V 5000 65 52 9.0
    905472 3.7/3.8V 5000 72 54 9.0
    905570 3.7/3.8V 4500 70 55 9.0
    906082 3.7/3.8V 5000 82 60 9.0
    914159 3.7/3.8V 2750 59 41 9.1
    915760 3.7/3.8V 4000 60 57 9.1
    923949 3.7/3.8V 2500 49 39 9.2
    925558 3.7/3.8V 3500 58 55 9.2
    925857 3.7/3.8V 4020 57 58 9.2
    933757 3.7/3.8V 3000 57 37 9.3
    933866 3.7/3.8V 2600 66 38 9.3
    934654 3.7/3.8V 3000 54 46 9.3
    944755 3.7/3.8V 3150 55 47 9.4
    945258 3.7/3.8V 4500 58 52 9.4
    953363 3.7/3.8V 3000 63 33 9.5
    953759 3.7/3.8V 2300 59 37 9.5
    953773 3.7/3.8V 3600 73 37 9.5
    953956 3.7/3.8V 3000 56 39 9.5
    954046 3.7/3.8V 2250 46 40 9.5
    954190 3.7/3.8V 5000 90 41 9.5
    954390 3.7/3.8V 5000 90 43 9.5
    954642 3.7/3.8V 2600 42 46 9.5
    955060 3.7/3.8V 4000 60 50 9.5
    955375 3.7/3.8V 5000 75 53 9.5
    955465 3.7/3.8V 5000 65 54 9.5
    955565 3.7/3.8V 5000 655 55 9.5
    955566 3.7/3.8V 5000 66 55 9.5
    955570 3.7/3.8V 5000 70 55 9.5
    955575 3.7/3.8V 3800 75 55 9.5
    963759 3.7/3.8V 3000 59 37 9.6
    964156 3.7/3.8V 3250 56 41 9.6
    973567 3.7/3.8V 3100 67 35 9.7
    975060 3.7/3.8V 4000 60 50 9.7
    994050 3.7/3.8V 2500 50 40 9.9
    1174170 3.7/3.8 4700 170 74 11
    1184050 3.7/3.8 3000 50 84 11
    2272107 3.7/3.8 2500 107 72 2.2
    2275107 3.7/3.8 2500 107 75 2.2
    2310589 3.7/3.8 3000 589 10 2.3
    2358108 3.7/3.8 2170 108 58 2.3
    2463104 3.7/3.8 2300 104 63 2.4
    2563172 3.7/3.8 4100 172 63 2.5
    2665142 3.7/3.8 3000 142 65 2.6
    2670155 3.7/3.8 4170 155 70 2.6
    2695100 3.7/3.8 2900  100 95 2.6
    2696102 3.7/3.8 3610 102 96 2.6
    2754161 3.7/3.8 3700 161 54 2.7
    2755170 3.7/3.8 3900 170 55 2.7
    2765159 3.7/3.8 4270 159 65 2.7
    2775110 3.7/3.8 2700  110 75 2.7
    2775120 3.7/3.8 3000  120 75 2.7
    2780102 3.7/3.8 3000  102 80 2.7
    2786161 3.7/3.8 4800 161 86 2.7
    2794127 3.7/3.8 4500 127 94 2.7
    2810193 3.7/3.8 4000 193 10 2.8
    2854142 3.7/3.8 3300 142 54 2.8
    2855125 3.7/3.8 3000 125 55 2.8
    2857138 3.7/3.8 3500  138 57 2.8
    2858139 3.7/3.8 2850 139 58 2.8
    2860116 3.7/3.8 3000  116 60 2.8
    2864138 3.7/3.8 3000 138 64 2.8
    2864147 3.7/3.8 3500 147 64 2.8
    2868145 3.7/3.8 5000 145 68 2.8
    2870100 3.7/3.8 2500 100 70 2.8
    2870104 3.7/3.8 2500 104 70 2.8
    2870105 3.7/3.8 2500 105 70 2.8
    2870120 3.7/3.8 3220 120 70 2.8
    2877128 3.7/3.8 4580 128 77 2.8
    2884101 3.7/3.8 3280 101 84 2.8
    2885118 3.7/3.8 3200 118 85 2.8
    2892140 3.7/3.8 5000  140 92 2.8
    2895107 3.7/3.8 4000  107 95 2.8
    2898100 3.7/3.8 3800 100 98 2.8
    2898125 3.7/3.8 5000  125 98 2.8
    2899109 3.7/3.8 4900  109 99 2.8
    2949119 3.7/3.8 2750 119 49 2.9
    2958135 3.7/3.8 3000 135 58 2.9
    2960116 3.7/3.8 3000  116 60 2.9
    2962118 3.7/3.8 3500 118 62 2.9
    2963115 3.7/3.8 3300  115 63 2.9
    2964120 3.7/3.8 3250  120 64 2.9
    2965119 3.7/3.8 3500 119 65 2.9
    2968178 3.7/3.8 5000 178 68 2.9
    2970115 3.7/3.8 3000  115 70 2.9
    2975122 3.7/3.8 4030 122 75 2.9
    2982131 3.7/3.8 4800 131 82 2.9
    2983122 3.7/3.8 4200 122 83 2.9
    2996109 3.7/3.8 3800 109 96 2.9
    2998116 3.7/3.8 3600 116 98 2.9
    2998125 3.7/3.8 5000 125 98 2.9
    3010097 3.7/3.8 4000 97 10 3
    3052118 3.7/3.8 2400 118 52 3
    3055148 3.7/3.8 3000 148 55 3
    3059132 3.7/3.8 3750 132 59 3
    3062114 3.7/3.8 4000 114 62 3
    3062138 3.7/3.8 4000 138 62 3
    3065165 3.7/3.8 5000 165 65 3
    3068120 3.7/3.8 3000 120 68 3
    3070145 3.7/3.8 4000 145 70 3
    3075108 3.7/3.8 3900 108 75 3
    3075120 3.7/3.8 3500 120 75 3
    3075131 3.7/3.8 4750 131 75 3
    3084114 3.7/3.8 4000 114 84 3
    3096137 3.7/3.8 4500 137 96 3
    3097140 3.7/3.8 5000 140 97 3
    3098140 3.7/3.8 5000 140 98 3
    3153130 3.7/3.8 2500 130 53 3.1
    3157125 3.7/3.8 3500 125 57 3.1
    3163138 3.7/3.8 4000 138 63 3.1
    3175145 3.7/3.8 5000 145 75 3.1
    3180142 3.7/3.8 5000 142 80 3.1
    3182109 3.7/3.8 4000 109 82 3.1
    3183103 3.7/3.8 4000 103 83 3.1
    3210097 3.7/3.8 5000 97 10 3.2
    3247135 3.7/3.8 3400 135 47 3.2
    3249108 3.7/3.8 2572 108 49 3.2
    3250154 3.7/3.8 2900 154 50 3.2
    3254143 3.7/3.8 4000 143 54 3.2
    3256118 3.7/3.8 2200 118 56 3.2
    3260133 3.7/3.8 4000 133 60 3.2
    3260136 3.7/3.8 4000 136 60 3.2
    3263135 3.7/3.8 4030 135 63 3.2
    3264120 3.7/3.8 4000 120 64 3.2
    3268137 3.7/3.8 4000 137 68 3.2
    3270128 3.7/3.8 3000 128 70 3.2
    3281112 3.7/3.8 4100 112 81 3.2
    3282123 3.7/3.8 4500 123 82 3.2
    3293107 3.7/3.8 5000 107 93 3.2
    3298125 3.7/3.8 5000 125 98 3.2
    3349119 3.7/3.8 2950 119 49 3.3
    3356123 3.7/3.8 2500 123 56 3.3
    3362125 3.7/3.8 3500 125 62 3.3
    3364125 3.7/3.8 3400 125 64 3.3
    3365100 3.7/3.8 2500 100 65 3.3
    3375128 3.7/3.8 3500 128 75 3.3
    3378107 3.7/3.8 4000 107 78 3.3
    3378130 3.7/3.8 2800 130 78 3.3
    3395145 3.7/3.8 5000 145 95 3.3
    3449118 3.7/3.8 2915 118 49 3.4
    3453100 3.7/3.8 2500 100 53 3.4
    3454119 3.7/3.8 3230 119 54 3.4
    3466731 3.7/3.8 2290 731 66 3.4
    3473125 3.7/3.8 5000 125 73 3.4
    3543114 3.7/3.8 2480 114 43 3.5
    3549109 3.7/3.8 2900 109 49 3.5
    3553125 3.7/3.8 2700 125 53 3.5
    3555162 3.7/3.8 4950 162 55 3.5
    3566102 3.7/3.8 3500 102 66 3.5
    3569125 3.7/3.8 4000 125 69 3.5
    3585100 3.7/3.8 4750 100 85 3.5
    3666100 3.7/3.8 2600 100 66 3.6
    3674110 3.7/3.8 3600 110 74 3.6
    3745101 3.7/3.8 2500 101 45 3.7
    3760130 3.7/3.8 4750 130 60 3.7
    3766110 3.7/3.8 3600 110 66 3.7
    3768110 3.7/3.8 3800 110 68 3.7
    3863118 3.7/3.8 4400 118 63 3.8
    3866101 3.7/3.8 3000 101 66 3.8
    3868129 3.7/3.8 4800 129 68 3.8
    3886115 3.7/3.8 5000 115 86 3.8
    3967106 3.7/3.8 4000 106 67 3.9
    3968130 3.7/3.8 5000 130 68 3.9
    4037125 3.7/3.8 2200 125 37 4
    4042150 3.7/3.8 2800 150 42 4
    4055102 3.7/3.8 2800 102 55 4
    4055130 3.7/3.8 4000 130 55 4
    4062131 3.7/3.8 4650 131 62 4
    4065116 3.7/3.8 5000 116 65 4
    4066125 3.7/3.8 4940 125 66 4
    4068125 3.7/3.8 3000 125 68 4
    4070115 3.7/3.8 4000 115 70 4
    4078110 3.7/3.8 5000 110 78 4
    4080100 3.7/3.8 5000 100 80 4
    4082110 3.7/3.8 5000 110 82 4
    4082113 3.7/3.8 5000 113 82 4
    4084110 3.7/3.8 5000 110 84 4
    4088110 3.7/3.8 5000 110 88 4
    4164120 3.7/3.8 4500 120 64 4.1
    4185103 3.7/3.8 5000 103 85 4.1
    4238106 3.7/3.8 2400 106 38 4.2
    4246105 3.7/3.8 2400 105 46 4.2
    4247123 3.7/3.8 3000 123 47 4.2
    4253122 3.7/3.8 3900 122 53 4.2
    4255107 3.7/3.8 4000 107 55 4.2
    4255128 3.7/3.8 4900 128 55 4.2
    4258120 3.7/3.8 3750 120 58 4.2
    4260115 3.7/3.8 4000 115 60 4.2
    4270125 3.7/3.8 5000 125 70 4.2
    4283114 3.7/3.8 4700 114 83 4.2
    4346112 3.7/3.8 3000 112 46 4.3
    4347118 3.7/3.8 3200 118 47 4.3
    4350104 3.7/3.8 3855 104 50 4.3
    4358135 3.7/3.8 4300 135 58 4.3
    4361135 3.7/3.8 5000 135 61 4.3
    4370100 3.7/3.8 4250 100 70 4.3
    4370115 3.7/3.8 5000 115 70 4.3
    4552118 3.7/3.8 3800 118 52 4.5
    4552122 3.7/3.8 4700 122 52 4.5
    4555120 3.7/3.8 3750 120 55 4.5
    4562108 3.7/3.8 4000 108 62 4.5
    4565110 3.7/3.8 4300 110 65 4.5
    4565113 3.7/3.8 5000 113 65 4.5
    4576125 3.7/3.8 5000 125 76 4.5
    4647117 3.7/3.8 4520 117 47 4.6
    4674118 3.7/3.8 4500 118 74 4.6
    4738109 3.7/3.8 2200 109 38 4.7
    4748123 3.7/3.8 3800 123 48 4.7
    4842125 3.7/3.8 3000 125 42 4.8
    4956120 3.7/3.8 4000 120 56 4.9
    5055115 3.7/3.8 4200 115 55 5
    5080100 3.7/3.8 5000 100 80 5
    5143102 3.7/3.8 3839 102 43 5.1
    5340101 3.7/3.8 3500 101 40 5.3
    5364105 3.7/3.8 4750 105 64 5.3
    5465110 3.7/3.8 5000 110 65 5.4
    5534105 3.7/3.8 2500 105 34 5.5
    5547105 3.7/3.8 3900 105 47 5.5
    5558110 3.7/3.8 4500 110 58 5.5
    5565113 3.7/3.8V 5000 113 65 5.5
    5654132 3.7/3.8 5000 132 54 5.6
    5744110 3.7/3.8 4600 110 44 5.7
    5745108 3.7/3.8 4600 108 45 5.7
    5758102 3.7/3.8 5000 102 58 5.7
    5936142 3.7/3.8 4200 142 36 5.9
    6045116 3.7/3.8 5000 116 45 6
    6060100 3.7/3.8 5000 100 60 6
    6060110 3.7/3.8V 5000 110 60 6.0
    6153110 3.7/3.8 4500 110 53 6.1
    6251100 3.7/3.8 4000 100 51 6.2
    6330125 3.7/3.8 3000 125 30 6.3
    6341101 3.7/3.8 3500 101 41 6.3
    6535125 3.7/3.8 4000 125 35 6.5
    6558102 3.7/3.8 5000 102 58 6.5
    6736122 3.7/3.8 3800 122 36 6.7
    6836137 3.7/3.8 3900 137 36 6.8
    6840114 3.7/3.8 3800 114 40 6.8
    7044123 3.7/3.8 5000 123 44 7
    7130101 3.7/3.8 3655 101 30 7.1
    7242123 3.7/3.8 4500 123 42 7.2
    7446102 3.7/3.8 3900 102 46 7.4
    7533101 3.7/3.8 4100 101 33 7.5
    7545125 3.7/3.8 5000 125 45 7.5
    7550105 3.7/3.8 5000 105 50 7.5
    7847100 3.7/3.8 5000 100 47 7.8
    8347113 3.7/3.8 5000 113 47 8.3
    8730100 3.7/3.8 3800 100 30 8.7
    9265108 3.7/3.8 5000 108 65 9.2
    9527101 3.7/3.8 3150 101 27 9.5
    25100150 3.7/3.8 4200 150 100 2.5
    28100100 3.7/3.8 3600 100 100 2.8
    28100120 3.7/3.8 5000 120 100 2.8
    29100100 3.7/3.8 3500 100 100 2.9
    29100101 3.7/3.8 3500 101 100 2.9
    29100114 3.7/3.8 4200 114 100 2.9
    30100100 3.7/3.8 4000 100 100 3
    30100102 3.7/3.8 4000 102 100 3
    30100103 3.7/3.8 4000 103 100 3
    30100133 3.7/3.8 5000 133 100 3
    30110106 3.7/3.8 4000 106 110 3
    31100100 3.7/3.8 4500 100 100 3.1
    33100103 3.7/3.8 4000 103 100 3.3
    38100102 3.7/3.8 5000 102 100 3.8
    Click here to find a list of other models

    T 7.2mm
    W
    47.0mm
    H
    89.0mm
    L
    80.0mm
