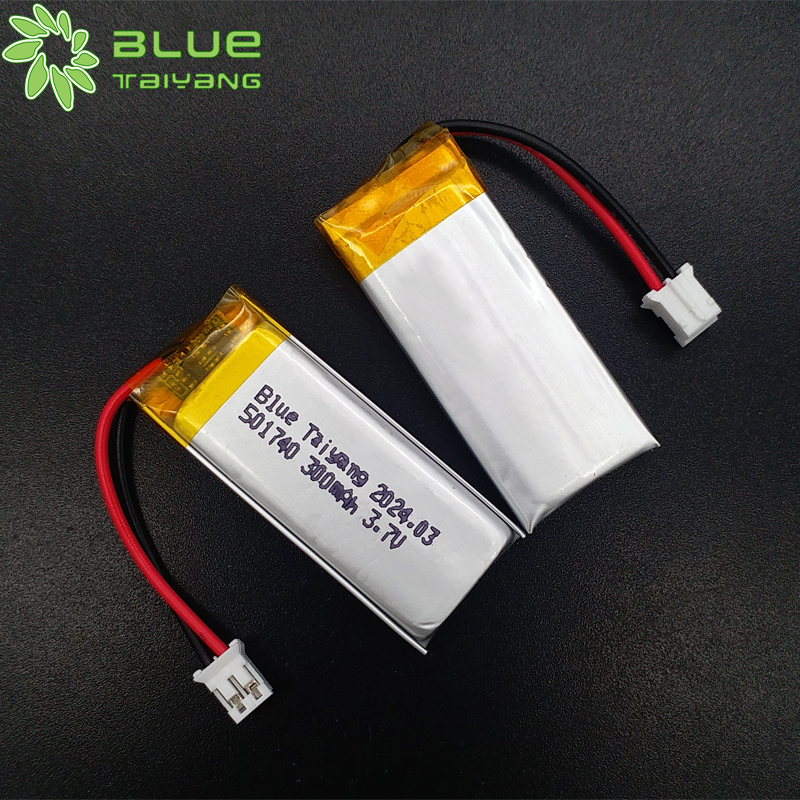

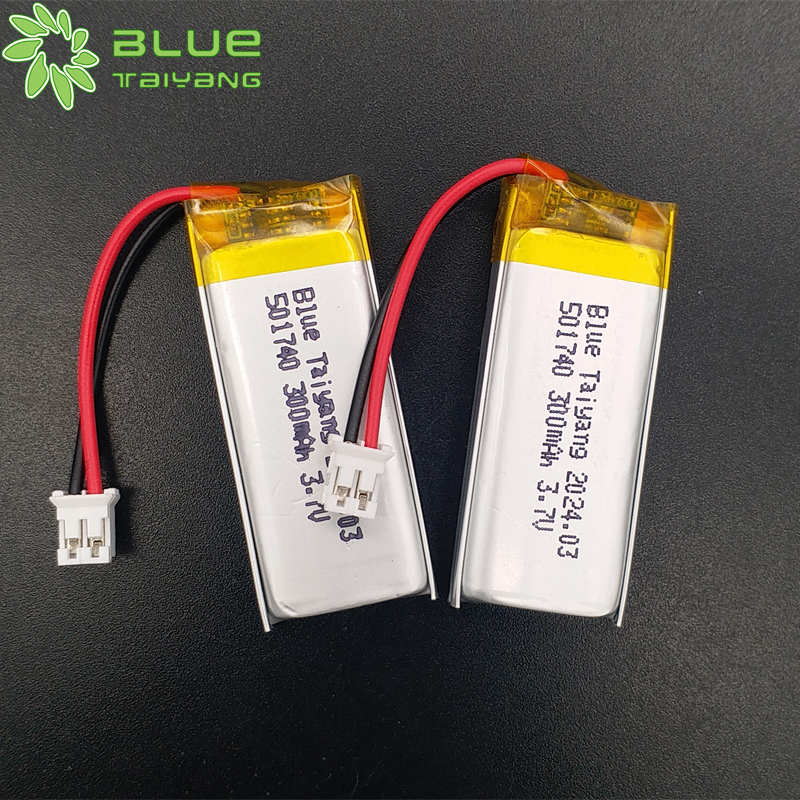

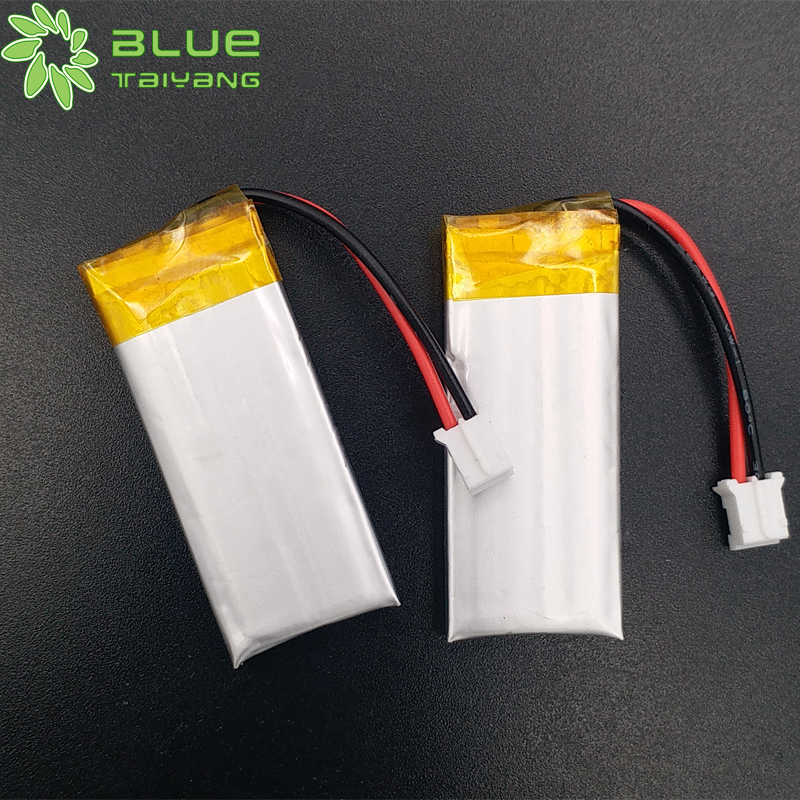

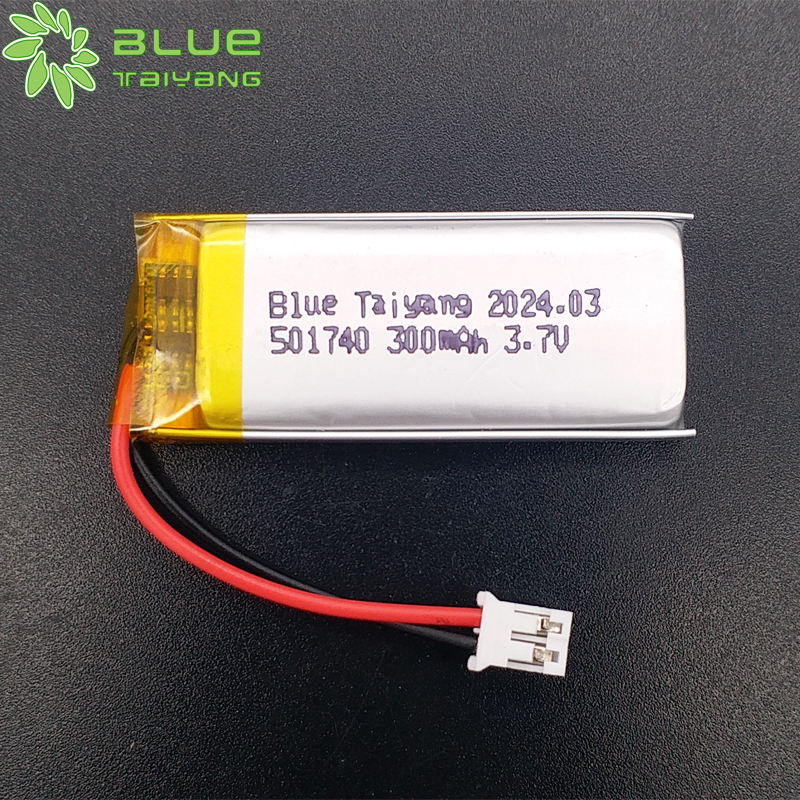

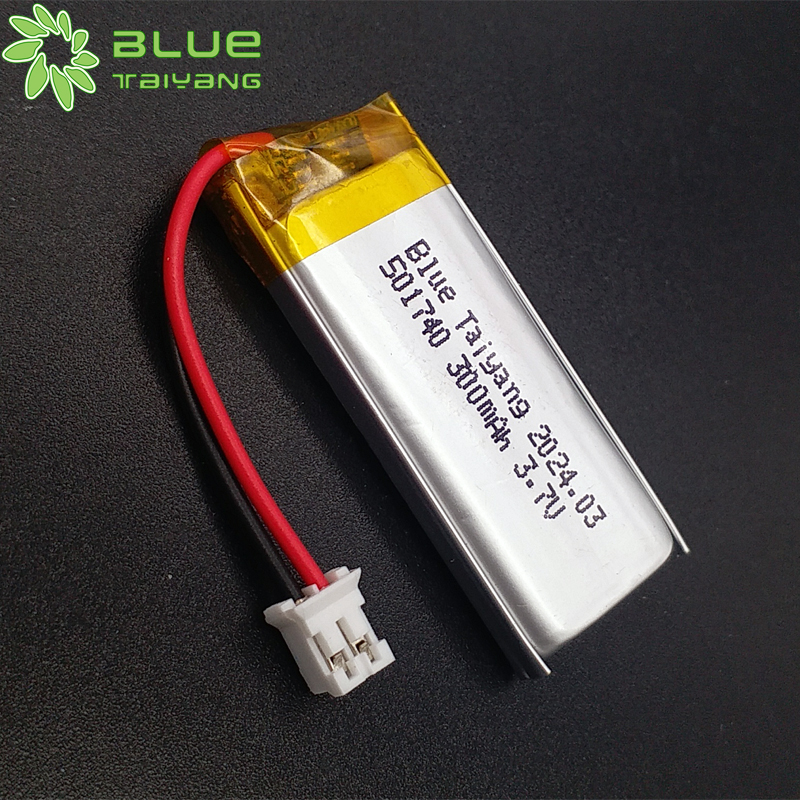

501740 rechargeable 3.7v 300mah li ion lithium polymer battery cell lipo battery 330mah 320mah 300mah
Product model: 501740 300mah 3.7V
Rechargeable or Non-rechargeable: Rechargeable battery
Nominal voltage: 3.7V/3.8V
Nominal capacity: 300mah
Discharge temperature: ordinary
Cycle life: >500 times
Discharge rate: 1C
Battery application: Electronics
Battery structure: Square flexible battery
Cell type: Polymer lithium battery cell
Rechargeable or Non-rechargeable: Rechargeable battery
Nominal voltage: 3.7V/3.8V
Nominal capacity: 300mah
Discharge temperature: ordinary
Cycle life: >500 times
Discharge rate: 1C
Battery application: Electronics
Battery structure: Square flexible battery
Cell type: Polymer lithium battery cell
Application Area
Consumer Electronics
Medical equipment
Instrument and apparatus
Smart Home
Digital products
Toy
cherry@bluetaiyang.com
Online Message
| Items | Parameter | |
| Battery model | LP501740 | |
| Design scheme | With PCM | |
| Nominal voltage | 3.7V | |
| Minimum capacity | 300mAh(1C discharge) | |

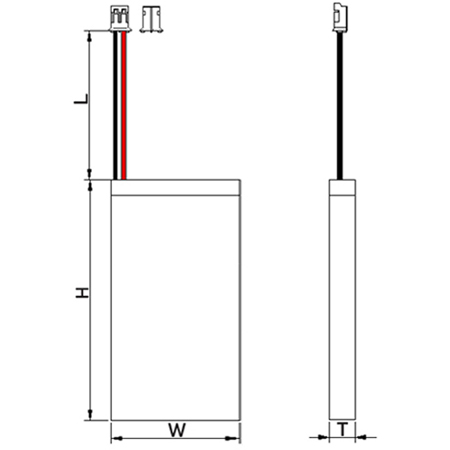

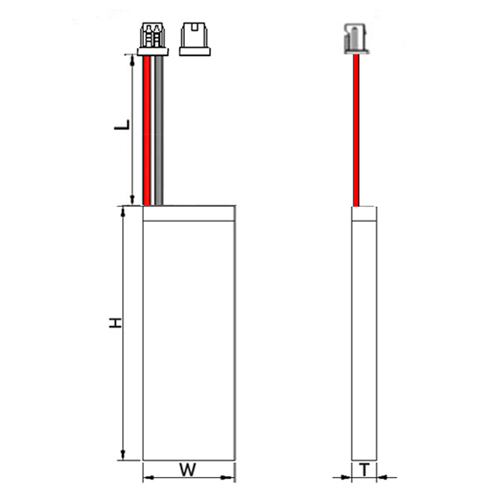

| Size |
T：5.0mm
W：17.0mm
H：40.0mm (Includes PCM and wires)
L：25.0mm (Wire length)
|
|
| Charging voltage | 4.2V | |
| Discharging cut-off voltage | 2.5V | |
| Standard charging | 0.2C /4.2V | |
| Max charging | 1.0C /4.2V | |
| Standard discharging | 0.2C/2.5V | |
| Max discharging | 1.0C/2.5V | |
| Weight | Appr：6g | |
| Shipment voltage | ≥3.9V | |
| Battery pack impedance | ≤100mΩ | |
| Operating temperature | Charging: 0°C ~ 45°C | |
| Discharging: -20°C ~60°C | ||
| Storage (At 50% SOC and specified temp, recoverable capacity in % vs time. ) | -0℃~25°C | (12 months, ≥85%) |
| -10℃ ~25°C | (6 months, ≥85% ) | |
| -10℃~45°C | (1 month, ≥90% ) | |
| 20±5°C is the recommended storage temperature | ||
| Model | Normal Voltage | Normal Capacity (mAh) | length (mm) | width (mm) | thickness (mm) | Download |
| 014545 | 3.7/3.8V | 180 | 45.0 | 45.0 | 1.0 | |
| 101524 | 3.7/3.8V | 300 | 24.0 | 15.0 | 10.0 | |
| 101527 | 3.7/3.8V | 400 | 27.0 | 15.0 | 10.0 | |
| 101530 | 3.7/3.8V | 380 | 30.0 | 15.0 | 10.0 | |
| 101921 | 3.7/3.8V | 330 | 21.0 | 19.0 | 10.0 | |
| 102020 | 3.7/3.8V | 320 | 20.0 | 20.0 | 10.0 | |
| 102027 | 3.7/3.8V | 450 | 27.0 | 20.0 | 10.0 | |
| 223229 | 3.7/3.8V | 205 | 29.0 | 32.0 | 2.2 | |
| 254050 | 3.7/3.8V | 500 | 50.0 | 40.0 | 2.5 | |
| 301730 | 3.7/3.8V | 110 | 30.0 | 16.0 | 3.0 | |
| 302020 | 3.7/3.8V | 100 | 20.0 | 20.0 | 3.0 | |
| 302025 | 3.7/3.8V | 110 | 25.0 | 20.0 | 3.0 | |
| 302030 | 3.7/3.8V | 140 | 30.0 | 20.0 | 3.0 | |
| 302035 | 3.7/3.8V | 180 | 35.0 | 20.0 | 3.0 | |
| 302040 | 3.7/3.8V | 200 | 40.0 | 20.0 | 3.0 | |
| 302050 | 3.7/3.8V | 160 | 50.0 | 20.0 | 3.0 | |
| 302045 | 3.7/3.8V | 220 | 45.0 | 20.0 | 3.0 | |
| 302125 | 3.7/3.8V | 135 | 25.0 | 21.0 | 3.0 | |
| 302258 | 3.7/3.8V | 400 | 58.0 | 12.0 | 3.0 | |
| 302323 | 3.7/3.8V | 110 | 23.0 | 23.0 | 3.0 | |
| 302526 | 3.7/3.8V | 160 | 26.0 | 25.0 | 3.0 | |
| 302530 | 3.7/3.8V | 170 | 30.0 | 25.0 | 3.0 | |
| 302535 | 3.7/3.8V | 210 | 35.0 | 25.0 | 3.0 | |
| 302540 | 3.7/3.8V | 240 | 40.0 | 25.0 | 3.0 | |
| 303030 | 3.7/3.8V | 210 | 30.0 | 30.0 | 3.0 | |
| 303035 | 3.7/3.8V | 285 | 35.0 | 30.0 | 3.0 | |
| 303040 | 3.7/3.8V | 300 | 40.0 | 30.0 | 3.0 | |
| 303450 | 3.7/3.8V | 500 | 50.0 | 34.0 | 3.0 | |
| 304040 | 3.7/3.8V | 480 | 40.0 | 40.0 | 3.0 | |
| 312050 | 3.7/3.8V | 300 | 50.0 | 20.0 | 3.1 | |
| 312276 | 3.7/3.8V | 420 | 76.0 | 22.0 | 3.1 | |
| 312325 | 3.7/3.8V | 180 | 25.0 | 23.0 | 3.1 | |
| 312540 | 3.7/3.8V | 300 | 40.0 | 25.0 | 3.1 | |
| 312725 | 3.7/3.8V | 190 | 27.0 | 25.0 | 3.1 | |
| 313035 | 3.7/3.8V | 280 | 35.0 | 30.0 | 3.1 | |
| 322033 | 3.7/3.8V | 150 | 33.0 | 20.0 | 3.2 | |
| 323035 | 3.7/3.8V | 285 | 35.0 | 30.0 | 3.2 | |
| 323050 | 3.7/3.8V | 480 | 50.0 | 30.0 | 3.2 | |
| 324041 | 3.7/3.8V | 450 | 41.0 | 40.0 | 3.2 | |
| 330858 | 3.7/3.8V | 155 | 58.0 | 8.0 | 3.3 | |
| 332530 | 3.7/3.8V | 250 | 30.0 | 25.0 | 3.3 | |
| 332725 | 3.7/3.8V | 200 | 27.0 | 25.0 | 3.3 | |
| 333048 | 3.7/3.8V | 450 | 48.0 | 30.0 | 3.3 | |
| 333274 | 3.7/3.8V | 800 | 74.0 | 32.0 | 3.3 | |
| 333448 | 3.7/3.8V | 500 | 48.0 | 34.0 | 3.3 | |
| 342035 | 3.7/3.8V | 220 | 35.0 | 20.0 | 3.4 | |
| 342124 | 3.7/3.8V | 160 | 24.0 | 21.0 | 3.4 | |
| 351538 | 3.7/3.8V | 170 | 38.0 | 15.0 | 3.5 | |
| 352131 | 3.7/3.8V | 180 | 31.0 | 23.0 | 3.5 | |
| 352328 | 3.7/3.8V | 200 | 28.0 | 23.0 | 3.5 | |
| 352530 | 3.7/3.8V | 210 | 30.0 | 25.0 | 3.5 | |
| 353030 | 3.7/3.8V | 300 | 30.0 | 30.0 | 3.5 | |
| 353035 | 3.7/3.8V | 300 | 35.0 | 30.0 | 3.5 | |
| 362045 | 3.7/3.8V | 300 | 45.0 | 20.0 | 3.6 | |
| 362730 | 3.7/3.8V | 270 | 30.0 | 27.0 | 3.6 | |
| 364050 | 3.7/3.8V | 750 | 50.0 | 40.0 | 3.6 | |
| 382030 | 3.7/3.8V | 180 | 30.0 | 20.0 | 3.8 | |
| 382036 | 3.7/3.8V | 250 | 36.0 | 20.0 | 3.8 | |
| 382222 | 3.7/3.8V | 225 | 22.0 | 22.0 | 3.8 | |
| 382542 | 3.7/3.8V | 450 | 42.0 | 25.0 | 3.8 | |
| 382927 | 3.7/3.8V | 350 | 27.0 | 29.0 | 3.8 | |
| 383040 | 3.7/3.8V | 450 | 40.0 | 30.0 | 3.8 | |
| 401230 | 3.7/3.8V | 120 | 30.0 | 12.0 | 4.0 | |
| 401573 | 3.7/3.8V | 450 | 73.0 | 15.0 | 4.0 | |
| 401730 | 3.7/3.8V | 170 | 30.0 | 17.0 | 4.0 | |
| 401738 | 3.7/3.8V | 260 | 38.0 | 17.0 | 4.0 | |
| 401827 | 3.7/3.8V | 190 | 27.0 | 18.0 | 4.0 | |
| 401940 | 3.7/3.8V | 300 | 40.0 | 19.0 | 4.0 | |
| 402025 | 3.7/3.8V | 150 | 25.0 | 20.0 | 4.0 | |
| 402030 | 3.7/3.8V | 150/200 | 30.0 | 20.0 | 4.0 | |
| 402035 | 3.7/3.8V | 240/250 | 35.0 | 20.0 | 4.0 | |
| 402040 | 3.7/3.8V | 280 | 40.0 | 20.0 | 4.0 | |
| 402050 | 3.7/3.8V | 380 | 50.0 | 20.0 | 4.0 | |
| 402226 | 3.7/3.8V | 280 | 26.0 | 22.0 | 4.0 | |
| 402323 | 3.7/3.8V | 150 | 23.0 | 23.0 | 4.0 | |
| 402423 | 3.7/3.8V | 230 | 23.0 | 24.0 | 4.0 | |
| 402532 | 3.7/3.8V | 320 | 32.0 | 25.0 | 4.0 | |
| 402535 | 3.7/3.8V | 320 | 35.0 | 25.0 | 4.0 | |
| 402540 | 3.7/3.8V | 350 | 40.0 | 25.0 | 4.0 | |
| 403030 | 3.7/3.8V | 300 | 30.0 | 30.0 | 4.0 | |
| 403035 | 3.7/3.8V | 420 | 35.0 | 30.0 | 4.0 | |
| 411230 | 3.7/3.8V | 120 | 30.0 | 12.0 | 4.1 | |
| 411530 | 3.7/3.8V | 150 | 30.0 | 15.0 | 4.1 | |
| 411541 | 3.7/3.8V | 250 | 41.0 | 15.0 | 4.1 | |
| 411645 | 3.7/3.8V | 250 | 45.0 | 16.0 | 4.1 | |
| 412535 | 3.7/3.8V | 400 | 35.0 | 25.0 | 4.1 | |
| 421530 | 3.7/3.8V | 150 | 30.0 | 15.0 | 4.2 | |
| 422025 | 3.7/3.8V | 180 | 25.0 | 20.0 | 4.2 | |
| 422321 | 3.7/3.8V | 190 | 21.0 | 23.0 | 4.2 | |
| 422530 | 3.7/3.8V | 300 | 30.0 | 25.0 | 4.2 | |
| 422826 | 3.7/3.8V | 330 | 26.0 | 28.0 | 4.2 | |
| 432023 | 3.7/3.8V | 160 | 23.0 | 20.0 | 4.3 | |
| 432025 | 3.7/3.8V | 190 | 25.0 | 20.0 | 4.3 | |
| 433028 | 3.7/3.8V | 445 | 28.0 | 30.0 | 4.3 | |
| 441540 | 3.7/3.8V | 285/300 | 40.0 | 15.0 | 4.4 | |
| 441718 | 3.7/3.8V | 110 | 18.0 | 17.0 | 4.4 | |
| 442223 | 3.7/3.8V | 250 | 23.0 | 22.0 | 4.4 | |
| 450835 | 3.7/3.8V | 115 | 35.0 | 8.0 | 4.5 | |
| 451142 | 3.7/3.8V | 210 | 42.0 | 11.0 | 4.5 | |
| 451228 | 3.7/3.8V | 138 | 28.0 | 12.0 | 4.5 | |
| 451430 | 3.7/3.8V | 150 | 30.0 | 14.0 | 4.5 | |
| 451525 | 3.7/3.8V | 155 | 25.0 | 15.0 | 4.5 | |
| 451528 | 3.7/3.8V | 160 | 28.0 | 15.0 | 4.5 | |
| 451535 | 3.7/3.8V | 200 | 35.0 | 15.0 | 4.5 | |
| 451730 | 3.7/3.8V | 200/210 | 30.0 | 17.0 | 4.5 | |
| 451830 | 3.7/3.8V | 200 | 30.0 | 18.0 | 4.5 | |
| 451832 | 3.7/3.8V | 335 | 32.0 | 18.0 | 4.5 | |
| 451936 | 3.7/3.8V | 380 | 36.0 | 19.0 | 4.5 | |
| 452028 | 3.7/3.8V | 280 | 28.0 | 20.0 | 4.5 | |
| 452036 | 3.7/3.8V | 330 | 36.0 | 20.0 | 4.5 | |
| 452226 | 3.7/3.8V | 300 | 26.0 | 22.0 | 4.5 | |
| 452425 | 3.7/3.8V | 300 | 25.0 | 24.0 | 4.5 | |
| 452429 | 3.7/3.8V | 360 | 29.0 | 24.0 | 4.5 | |
| 452430 | 3.7/3.8V | 310 | 30.0 | 24.0 | 4.5 | |
| 452528 | 3.7/3.8V | 300 | 28.0 | 25.0 | 4.5 | |
| 452530 | 3.7/3.8V | 300/320 | 30.0 | 25.0 | 4.5 | |
| 452550 | 3.7/3.8V | 500 | 50.0 | 25.0 | 4.5 | |
| 452631 | 3.7/3.8V | 340 | 31.0 | 26.0 | 4.5 | |
| 461455 | 3.7/3.8V | 330 | 55.0 | 14.0 | 4.6 | |
| 461730 | 3.7/3.8V | 200 | 30.0 | 17.0 | 4.6 | |
| 461840 | 3.7/3.8V | 340 | 40.0 | 18.0 | 4.6 | |
| 471546 | 3.7/3.8V | 380 | 46.0 | 15.0 | 4.7 | |
| 471937 | 3.7/3.8V | 350 | 37.0 | 19.0 | 4.7 | |
| 472023 | 3.7/3.8V | 180/270 | 23.0 | 20.0 | 4.7 | |
| 481236 | 3.7/3.8V | 220 | 36.0 | 12.0 | 4.8 | |
| 481848 | 3.7/3.8V | 450 | 48.0 | 18.0 | 4.8 | |
| 482626 | 3.7/3.8V | 285 | 26.0 | 26.0 | 4.8 | |
| 491447 | 3.7/3.8V | 280 | 47.0 | 14.0 | 4.9 | |
| 492220 | 3.7/3.8V | 195 | 20.0 | 22.0 | 4.9 | |
| 500940 | 3.7/3.8V | 145 | 40.0 | 9.0 | 5.0 | |
| 501040 | 3.7/3.8V | 185 | 40.0 | 10.0 | 5.0 | |
| 501128 | 3.7/3.8V | 150 | 28.0 | 11.0 | 5.0 | |
| 501130 | 3.7/3.8V | 150 | 30.0 | 11.0 | 5.0 | |
| 501220 | 3.7/3.8V | 110 | 20.0 | 12.0 | 5.0 | |
| 501224 | 3.7/3.8V | 110 | 24.0 | 12.0 | 5.0 | |
| 501228 | 3.7/3.8V | 130 | 28.0 | 12.0 | 5.0 | |
| 501230 | 3.7/3.8V | 160 | 30.0 | 12.0 | 5.0 | |
| 501232 | 3.7/3.8V | 182 | 32.0 | 12.0 | 5.0 | |
| 501249 | 3.7/3.8V | 250 | 49.0 | 12.0 | 5.0 | |
| 501332 | 3.7/3.8V | 170 | 32.0 | 13.0 | 5.0 | |
| 501352 | 3.7/3.8V | 300 | 52.0 | 13.0 | 5.0 | |
| 501447 | 3.7/3.8V | 280 | 47.0 | 14.0 | 5.0 | |
| 501446 | 3.7/3.8V | 385 | 46.0 | 14.0 | 5.0 | |
| 501521 | 3.7/3.8V | 130 | 21.0 | 15.0 | 5.0 | |
| 501525 | 3.7/3.8V | 160 | 25.0 | 15.0 | 5.0 | |
| 501530 | 3.7/3.8V | 200 | 30.0 | 15.0 | 5.0 | |
| 501535 | 3.7/3.8V | 230 | 35.0 | 15.0 | 5.0 | |
| 501538 | 3.7/3.8V | 335 | 38.0 | 15.0 | 5.0 | |
| 501542 | 3.7/3.8V | 320 | 42.0 | 15.0 | 5.0 | |
| 501622 | 3.7/3.8V | 150 | 22.0 | 16.0 | 5.0 | |
| 501743 | 3.7/3.8V | 300 | 43.0 | 17.0 | 5.0 | |
| 501745 | 3.7/3.8V | 380 | 45.0 | 17.0 | 5.0 | |
| 501943 | 3.7/3.8V | 390 | 43.0 | 19.0 | 5.0 | |
| 502023 | 3.7/3.8V | 245 | 23.0 | 20.0 | 5.0 | |
| 502025 | 3.7/3.8V | 200/250 | 25.0 | 20.0 | 5.0 | |
| 502030 | 3.7/3.8V | 250/290/340 | 30.0 | 20.0 | 5.0 | |
| 502035 | 3.7/3.8V | 350/360 | 35.0 | 20.0 | 5.0 | |
| 502036 | 3.7/3.8V | 450 | 36.0 | 20.0 | 5.0 | |
| 502039 | 3.7/3.8V | 475 | 39.0 | 20.0 | 5.0 | |
| 502228 | 3.7/3.8V | 330 | 28.0 | 22.0 | 5.0 | |
| 502248 | 3.7/3.8V | 500 | 48.0 | 22.0 | 5.0 | |
| 502235 | 3.7/3.8V | 480 | 35.0 | 22.0 | 5.0 | |
| 502325 | 3.7/3.8V | 250 | 25.0 | 23.0 | 5.0 | |
| 502340 | 3.7/3.8V | 500 | 40.0 | 23.0 | 5.0 | |
| 502530 | 3.7/3.8V | 300 | 30.0 | 25.0 | 5.0 | |
| 502532 | 3.7/3.8V | 390 | 32.0 | 25.0 | 5.0 | |
| 502533 | 3.7/3.8V | 500/375 | 33.0 | 25.0 | 5.0 | |
| 502535 | 3.7/3.8V | 400 | 35.0 | 25.0 | 5.0 | |
| 502540 | 3.7/3.8V | 500 | 40.0 | 25.0 | 5.0 | |
| 502728 | 3.7/3.8V | 350 | 28.0 | 27.0 | 5.0 | |
| 502828 | 3.7/3.8V | 500 | 28.0 | 28.0 | 5.0 | |
| 502736 | 3.7/3.8V | 500 | 36.0 | 27.0 | 5.0 | |
| 502837 | 3.7/3.8V | 450 | 37.0 | 28.0 | 5.0 | |
| 503030 | 3.7/3.8V | 400 | 30.0 | 30.0 | 5.0 | |
| 503035 | 3.7/3.8V | 500 | 35.0 | 30.0 | 5.0 | |
| 531650 | 3.7/3.8V | 400 | 50.0 | 16.0 | 5.3 | |
| 531745 | 3.7/3.8V | 400 | 45.0 | 17.0 | 5.3 | |
| 531929 | 3.7/3.8V | 300 | 29.0 | 19.0 | 5.3 | |
| 532030 | 3.7/3.8V | 280 | 30.0 | 20.0 | 5.3 | |
| 532121 | 3.7/3.8V | 275 | 21.0 | 21.0 | 5.3 | |
| 532123 | 3.7/3.8V | 285 | 23.0 | 21.0 | 5.3 | |
| 532331 | 3.7/3.8V | 360 | 31.0 | 23.0 | 5.3 | |
| 541834 | 3.7/3.8V | 350 | 34.0 | 18.0 | 5.4 | |
| 542524 | 3.7/3.8V | 460 | 24.0 | 25.0 | 5.4 | |
| 550935 | 3.7/3.8V | 150 | 35.0 | 9.0 | 5.5 | |
| 551135 | 3.7/3.8V | 180 | 35.0 | 11.0 | 5.5 | |
| 551235 | 3.7/3.8V | 200/180 | 35.0 | 12.0 | 5.5 | |
| 551430 | 3.7/3.8V | 200 | 30.0 | 14.0 | 5.5 | |
| 551525 | 3.7/3.8V | 170 | 25.0 | 15.0 | 5.5 | |
| 551535 | 3.7/3.8V | 240 | 35.0 | 15.0 | 5.5 | |
| 551729 | 3.7/3.8V | 280 | 29.0 | 17.0 | 5.5 | |
| 551730 | 3.7/3.8V | 220 | 30.0 | 17.0 | 5.5 | |
| 551735 | 3.7/3.8V | 320 | 35.0 | 17.0 | 5.5 | |
| 552020 | 3.7/3.8V | 200 | 20.0 | 20.0 | 5.5 | |
| 552025 | 3.7/3.8V | 270 | 25.0 | 20.0 | 5.5 | |
| 552030 | 3.7/3.8V | 300 | 30.0 | 20.0 | 5.5 | |
| 552035 | 3.7/3.8V | 350 | 35.0 | 20.0 | 5.5 | |
| 552045 | 3.7/3.8V | 450 | 45.0 | 20.0 | 5.5 | |
| 552124 | 3.7/3.8V | 300 | 24.0 | 21.0 | 5.5 | |
| 552130 | 3.7/3.8V | 385 | 30.0 | 21.0 | 5.5 | |
| 552225 | 3.7/3.8V | 250 | 25.0 | 22.0 | 5.5 | |
| 552334 | 3.7/3.8V | 380 | 34.0 | 23.0 | 5.5 | |
| 552428 | 3.7/3.8V | 470 | 28.0 | 24.0 | 5.5 | |
| 552528 | 3.7/3.8V | 470 | 28.0 | 25.0 | 5.5 | |
| 552728 | 3.7/3.8V | 420 | 28.0 | 27.0 | 5.5 | |
| 561030 | 3.7/3.8V | 140 | 30.0 | 10.0 | 5.6 | |
| 561545 | 3.7/3.8V | 270 | 45.0 | 15.0 | 5.6 | |
| 562129 | 3.7/3.8V | 500 | 29.0 | 21.0 | 5.6 | |
| 562432 | 3.7/3.8V | 400 | 32.0 | 24.0 | 5.6 | 7.5C |
| 571752 | 3.7/3.8V | 500 | 52.0 | 17.0 | 5.7 | |
| 572022 | 3.7/3.8V | 280 | 22.0 | 20.0 | 5.7 | |
| 572030 | 3.7/3.8V | 300 | 30.0 | 20.0 | 5.7 | |
| 572035 | 3.7/3.8V | 480 | 35.0 | 20.0 | 5.7 | |
| 572124 | 3.7/3.8V | 300 | 41.0 | 21.0 | 5.7 | |
| 581525 | 3.7/3.8V | 180 | 25.0 | 15.0 | 5.8 | |
| 581938 | 3.7/3.8V | 500 | 38.0 | 19.0 | 5.8 | |
| 582021 | 3.7/3.8V | 200 | 21.0 | 20.0 | 5.8 | |
| 582030 | 3.7/3.8V | 420 | 30.0 | 20.0 | 5.8 | |
| 582330 | 3.7/3.8V | 380 | 30.0 | 23.0 | 5.8 | |
| 582526 | 3.7/3.8V | 350 | 26.0 | 25.0 | 5.8 | |
| 582528 | 3.7/3.8V | 450 | 28.0 | 25.0 | 5.8 | |
| 582530 | 3.7/3.8V | 400 | 30.0 | 25.0 | 5.8 | |
| 582728 | 3.7/3.8V | 400 | 28.0 | 27.0 | 5.8 | |
| 601025 | 3.7/3.8V | 120 | 25.0 | 10.0 | 6.0 | |
| 601138 | 3.7/3.8V | 220 | 38.0 | 11.0 | 6.0 | |
| 601230 | 3.7/3.8V | 170 | 30.0 | 12.0 | 6.0 | |
| 601321 | 3.7/3.8V | 150 | 21.0 | 13.0 | 6.0 | |
| 601419 | 3.7/3.8V | 110 | 19.0 | 14.0 | 6.0 | |
| 601430 | 3.7/3.8V | 230 | 30.0 | 14.0 | 6.0 | |
| 601447 | 3.7/3.8V | 380 | 47.0 | 14.0 | 6.0 | |
| 601525 | 3.7/3.8V | 180 | 25.0 | 15.0 | 6.0 | |
| 601535 | 3.7/3.8V | 260/300 | 35.0 | 25.0 | 6.0 | |
| 601621 | 3.7/3.8V | 160 | 21.0 | 16.0 | 6.0 | |
| 601735 | 3.7/3.8V | 350 | 35.0 | 17.0 | 6.0 | |
| 601837 | 3.7/3.8V | 495 | 37.0 | 18.0 | 6.0 | |
| 602020 | 3.7/3.8V | 180 | 20.0 | 20.0 | 6.0 | |
| 602024 | 3.7/3.8V | 270 | 24.0 | 20.0 | 6.0 | |
| 602025 | 3.7/3.8V | 240/250/270 | 25.0 | 20.0 | 6.0 | |
| 602028 | 3.7/3.8V | 320 | 28.0 | 20.0 | 6.0 | |
| 602030 | 3.7/3.8V | 300/330/350 | 30.0 | 20.0 | 6.0 | |
| 602035 | 3.7/3.8V | 400/510 | 35.0 | 20.0 | 6.0 | |
| 602040 | 3.7/3.8V | 450/500/600 | 40.0 | 20.0 | 6.0 | |
| 602045 | 3.7/3.8V | 500 | 45.0 | 20.0 | 6.0 | |
| 602240 | 3.7/3.8V | 500 | 40.0 | 22.0 | 6.0 | |
| 602530 | 3.7/3.8V | 480 | 30.0 | 25.0 | 6.0 | |
| 602533 | 3.7/3.8V | 450 | 33.0 | 25.0 | 6.0 | |
| 602535 | 3.7/3.8V | 500/505/550 | 35.0 | 25.0 | 6.0 | |
| 602626 | 3.7/3.8V | 400 | 26.0 | 26.0 | 6.0 | |
| 602827 | 3.7/3.8V | 420 | 27.0 | 28.0 | 6.0 | |
| 603030 | 3.7/3.8V | 500 | 30.0 | 30.0 | 6.0 | |
| 621430 | 3.7/3.8V | 230 | 30.0 | 14.0 | 6.2 | |
| 621436 | 3.7/3.8V | 340 | 36.0 | 14.0 | 6.2 | |
| 621740 | 3.7/3.8V | 430 | 40.0 | 17.0 | 6.2 | |
| 622035 | 3.7/3.8V | 450 | 35.0 | 20.0 | 6.2 | |
| 622334 | 3.7/3.8V | 500 | 34.0 | 23.0 | 6.2 | |
| 622435 | 3.7/3.8V | 500 | 35.0 | 24.0 | 6.2 | |
| 631324 | 3.7/3.8V | 180 | 24.0 | 13.0 | 6.3 | |
| 631341 | 3.7/3.8V | 380 | 41.0 | 13.0 | 6.3 | |
| 631342 | 3.7/3.8V | 390 | 42.0 | 13.0 | 6.3 | |
| 632023 | 3.7/3.8V | 290 | 23.0 | 20.0 | 6.3 | |
| 632523 | 3.7/3.8V | 340 | 25.0 | 23.0 | 6.3 | |
| 651230 | 3.7/3.8V | 207 | 30.0 | 12.0 | 6.5 | |
| 651447 | 3.7/3.8V | 450 | 47.0 | 14.0 | 6.5 | |
| 651518 | 3.7/3.8V | 150 | 18.0 | 15.0 | 6.5 | |
| 651525 | 3.7/3.8V | 210 | 25.0 | 15.0 | 6.5 | |
| 651535 | 3.7/3.8V | 300 | 35.0 | 15.0 | 6.5 | |
| 651550 | 3.7/3.8V | 380 | 50.0 | 15.0 | 6.5 | |
| 651830 | 3.7/3.8V | 300 | 30.0 | 18.0 | 6.5 | 3C |
| 651728 | 3.7/3.8V | 240 | 28.0 | 17.0 | 6.5 | |
| 652035 | 3.7/3.8V | 420 | 35.0 | 20.0 | 6.5 | |
| 652432 | 3.7/3.8V | 450 | 32.0 | 24.0 | 6.5 | |
| 652530 | 3.7/3.8V | 400/510 | 30.0 | 25.0 | 6.5 | |
| 652728 | 3.7/3.8V | 470 | 28.0 | 27.0 | 6.5 | |
| 661522 | 3.7/3.8V | 190 | 22.0 | 15.0 | 6.6 | |
| 671927 | 3.7/3.8V | 340 | 27.0 | 19.0 | 6.7 | |
| 681324 | 3.7/3.8V | 170 | 24.0 | 13.0 | 6.8 | |
| 681818 | 3.7/3.8V | 155 | 18.0 | 18.0 | 6.8 | |
| 681919 | 3.7/3.8V | 212 | 19.0 | 19.0 | 6.8 | |
| 682028 | 3.7/3.8V | 250 | 28.0 | 28.0 | 6.8 | |
| 682030 | 3.7/3.8V | 350 | 30.0 | 20.0 | 6.8 | |
| 682035 | 3.7/3.8V | 500 | 35.0 | 20.0 | 6.8 | |
| 682427 | 3.7/3.8V | 450 | 27.0 | 24.0 | 6.8 | |
| 701040 | 3.7/3.8V | 230 | 40.0 | 10.0 | 7.0 | |
| 701221 | 3.7/3.8V | 120 | 21.0 | 12.0 | 7.0 | |
| 701224 | 3.7/3.8V | 142 | 24.0 | 12.0 | 7.0 | |
| 701250 | 3.7/3.8V | 380 | 50.0 | 12.0 | 7.0 | |
| 701418 | 3.7/3.8V | 110 | 18.0 | 14.0 | 7.0 | |
| 701421 | 3.7/3.8V | 160 | 21.0 | 14.0 | 7.0 | |
| 701430 | 3.7/3.8V | 250 | 30.0 | 14.0 | 7.0 | |
| 701435 | 3.7/3.8V | 300/320 | 35.0 | 14.0 | 7.0 | |
| 701436 | 3.7/3.8V | 300 | 36.0 | 14.0 | 7.0 | |
| 701438 | 3.7/3.8V | 410 | 38.0 | 14.0 | 7.0 | |
| 701524 | 3.7/3.8V | 200/220 | 24.0 | 15.0 | 7.0 | |
| 701528 | 3.7/3.8V | 240 | 28.0 | 15.0 | 7.0 | |
| 701535 | 3.7/3.8V | 300/320/350 | 35.0 | 15.0 | 7.0 | |
| 701620 | 3.7/3.8V | 160 | 20.0 | 16.0 | 7.0 | |
| 701736 | 3.7/3.8V | 350 | 36.0 | 17.0 | 7.0 | |
| 701738 | 3.7/3.8V | 420 | 38.0 | 17.0 | 7.0 | |
| 701818 | 3.7/3.8V | 150 | 18.0 | 18.0 | 7.0 | |
| 701821 | 3.7/3.8V | 150 | 21.0 | 18.0 | 7.0 | |
| 701840 | 3.7/3.8V | 500 | 40.0 | 18.0 | 7.0 | |
| 702020 | 3.7/3.8V | 180 | 20.0 | 20.0 | 7.0 | |
| 702024 | 3.7/3.8V | 260/300 | 24.0 | 20.0 | 7.0 | |
| 702030 | 3.7/3.8V | 400/420 | 30.0 | 20.0 | 7.0 | |
| 702039 | 3.7/3.8V | 500 | 39.0 | 20.0 | 7.0 | |
| 702040 | 3.7/3.8V | 500 | 40.0 | 20.0 | 7.0 | |
| 702322 | 3.7/3.8V | 300 | 22.0 | 23.0 | 7.0 | |
| 702327 | 3.7/3.8V | 400 | 27.0 | 23.0 | 7.0 | |
| 722232 | 3.7/3.8V | 500 | 32.0 | 22.0 | 7.2 | |
| 731824 | 3.7/3.8V | 200 | 24.0 | 18.0 | 7.3 | |
| 741435 | 3.7/3.8V | 320 | 35.0 | 14.0 | 7.4 | |
| 741529 | 3.7/3.8V | 310 | 29.0 | 15.0 | 7.4 | |
| 741543 | 3.7/3.8V | 500 | 43.0 | 15.0 | 7.4 | |
| 751342 | 3.7/3.8V | 380 | 42.0 | 13.0 | 7.5 | |
| 751524 | 3.7/3.8V | 230/240 | 24.0 | 15.0 | 7.5 | |
| 751528 | 3.7/3.8V | 280 | 28.0 | 15.0 | 7.5 | |
| 751535 | 3.7/3.8V | 380 | 35.0 | 15.0 | 7.5 | |
| 751536 | 3.7/3.8V | 460 | 36.0 | 15.0 | 7.5 | |
| 751540 | 3.7/3.8V | 500 | 40.0 | 15.0 | 7.5 | |
| 751635 | 3.7/3.8V | 450 | 35.0 | 16.0 | 7.5 | |
| 751536 | 3.7/3.8V | 460 | 36.0 | 15.0 | 7.5 | |
| 751540 | 3.7/3.8V | 480/500 | 40.0 | 15.0 | 7.5 | |
| 752020 | 3.7/3.8V | 250 | 20.0 | 20.0 | 7.5 | |
| 752124 | 3.7/3.8V | 360 | 24.0 | 21.0 | 7.5 | |
| 752233 | 3.7/3.8V | 450 | 33.0 | 22.0 | 7.5 | |
| 752530 | 3.7/3.8V | 500 | 30.0 | 25.0 | 7.5 | |
| 791535 | 3.7/3.8V | 380 | 35.0 | 15.0 | 7.9 | |
| 801348 | 3.7/3.8V | 500 | 48.0 | 13.0 | 8.0 | |
| 801436 | 3.7/3.8V | 400 | 36.0 | 14.0 | 8.0 | |
| 801520 | 3.7/3.8V | 200 | 20.0 | 15.0 | 8.0 | |
| 801523 | 3.7/3.8V | 240 | 23.0 | 15.0 | 8.0 | |
| 801525 | 3.7/3.8V | 240 | 25.0 | 15.0 | 8.0 | |
| 801530 | 3.7/3.8V | 280 | 30.0 | 15.0 | 8.0 | |
| 801534 | 3.7/3.8V | 360 | 34.0 | 15.0 | 8.0 | |
| 801620 | 3.7/3.8V | 160/180 | 20.0 | 16.0 | 8.0 | |
| 801637 | 3.7/3.8V | 400 | 37.0 | 16.0 | 8.0 | |
| 801640 | 3.7/3.8V | 500 | 40.0 | 16.0 | 8.0 | |
| 801730 | 3.7/3.8V | 360/400 | 30.0 | 17.0 | 8.0 | |
| 801738 | 3.7/3.8V | 450 | 38.0 | 17.0 | 8.0 | |
| 801821 | 3.7/3.8V | 240 | 21.0 | 18.0 | 8.0 | |
| 801823 | 3.7/3.8V | 250 | 23.0 | 18.0 | 8.0 | |
| 801832 | 3.7/3.8V | 500 | 32.0 | 18.0 | 8.0 | |
| 802022 | 3.7/3.8V | 290 | 22.0 | 20.0 | 8.0 | |
| 802030 | 3.7/3.8V | 400/420/450 | 30.0 | 20.0 | 8.0 | |
| 802035 | 3.7/3.8V | 500 | 35.0 | 20.0 | 8.0 | |
| 802036 | 3.7/3.8V | 500 | 36.0 | 20.0 | 8.0 | |
| 802126 | 3.7/3.8V | 430 | 26.0 | 21.0 | 8.0 | |
| 802528 | 3.7/3.8V | 500 | 28.0 | 25.0 | 8.0 | |
| 811726 | 3.7/3.8V | 270 | 26.0 | 17.0 | 8.1 | |
| 822025 | 3.7/3.8V | 400 | 25.0 | 20.0 | 8.2 | |
| 822128 | 3.7/3.8V | 420 | 28.0 | 21.0 | 8.2 | |
| 842024 | 3.7/3.8V | 400 | 24.0 | 20.0 | 8.4 | |
| 851425 | 3.7/3.8V | 300 | 25.0 | 14.0 | 8.5 | |
| 851442 | 3.7/3.8V | 500 | 42.0 | 14.0 | 8.5 | |
| 851528 | 3.7/3.8V | 265 | 28.0 | 15.0 | 8.5 | |
| 851735 | 3.7/3.8V | 500 | 35.0 | 17.0 | 8.5 | |
| 852030 | 3.7/3.8V | 450 | 30.0 | 20.0 | 8.5 | |
| 861632 | 3.7/3.8V | 380 | 32.0 | 16.0 | 8.6 | |
| 901818 | 3.7/3.8V | 200 | 18.0 | 18.0 | 9.0 | |
| 901828 | 3.7/3.8V | 380 | 28.0 | 18.0 | 9.0 | |
| 901830 | 3.7/3.8V | 450 | 30.0 | 18.0 | 9.0 | |
| 902025 | 3.7/3.8V | 400 | 25.0 | 20.0 | 9.0 | |
| 902030 | 3.7/3.8V | 450/500 | 30.0 | 20.0 | 9.0 | |
| 921728 | 3.7/3.8V | 360 | 28.0 | 17.0 | 9.2 | |
| 922228 | 3.7/3.8V | 500 | 28.0 | 22.0 | 9.2 | |
| 951530 | 3.7/3.8V | 400 | 30.0 | 15.0 | 9.5 | |
| 951623 | 3.7/3.8V | 290 | 23.0 | 16.0 | 9.5 | |
| 951723 | 3.7/3.8V | 260 | 23.0 | 17.0 | 9.5 | |
| 961737 | 3.7/3.8V | 500 | 37.0 | 17.0 | 9.6 | |
| 971630 | 3.7/3.8V | 500 | 30.0 | 16.0 | 9.7 | |
| 981742 | 3.7/3.8V | 420 | 42.0 | 17.0 | 9.8 |
|
Click here to find a list of other models |
| T |
5.0mm |
|
W |
17.0mm |
|
H |
40.0mm |
|
L |
25.0mm |
Product application
Related Products
402535 3.7v 300mah 1.18wh rechargeable ultra thin battery replacement lithium polymer battery
402532 custom small battery rechargeable lipo battery 320 mah 3.7v
502055 Lithium Battery Rechargeable 3.7v 550mah Li-polymer 502055 3.7 v Li-po Battery 500 Mah Lipo Battery

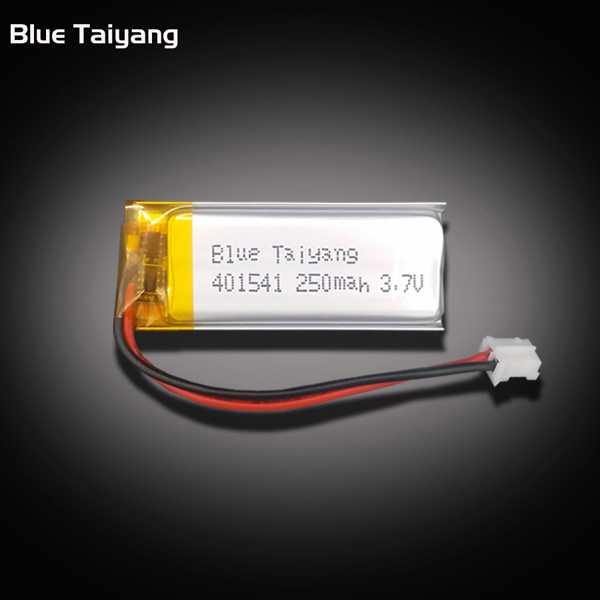

rechargeable lipo 401541 3.7v 250mah batterie 3.7v 250mah li polymer battery
Hotline
+86-755-21058846
E-mail
cherry@bluetaiyang.com
Company address:Building D, No. 91 Xinsheng Road, LongGang, Shenzhen, CN.
Production base: Dongguan China
Production base: Dongguan China
Products
Lithium polymer cell battery
Lithium-ion battery
Li-MnO2 battery
Li-SoCL2 battery
Ni-MH battery
Li-FePO4 battery
Lithium ion battery pack
Li-MnO2 battery pack
Li-SoCL2 battery pack
Ni-MH battery pack
Electric bicycle battery
Energy storage battery
Scan the code follow us
Copyright © Shenzhen Blue TaiYang new energy technology Co., LTD Guangdong ICP prepared 12040227
